ARCBRO Scout 2

Scout 2 Economical Portable CNC Cutter



Overview

 < Scout 2 | Standard Features >

The Most Economical CNC Cutter, Stablest!

  • The ArcBro-Scout 2 standard cutting area is 1,200X2,000mm
  • Max cutting area can reach 1,500X15,000mm
  • Recommended cutting width 1,500mm
  • Oxy-Fuel and Plasma cutting
  • Compact, Light weight, easy to use and set up
  • It can cut any figures unless you can design using Auto CAD
  • Be used directly on the plate to be cut or mounted on a cutting table
  • Motorized torch riser allows torch adjustment from controller

CNC CONTROLLER:

ArcBro Scout 2 integrates a completely new version of CNC controller with many new features:

  • High Memory for Users’ Programs
  • Colorful Screen, high resolution
  • Built-in Library of Commonly Used Figures
  • Break-point & Power-cut Restoration
  • Returning to Reference Point
  • Kerf compensation
  • Revolving
  • Mirror image

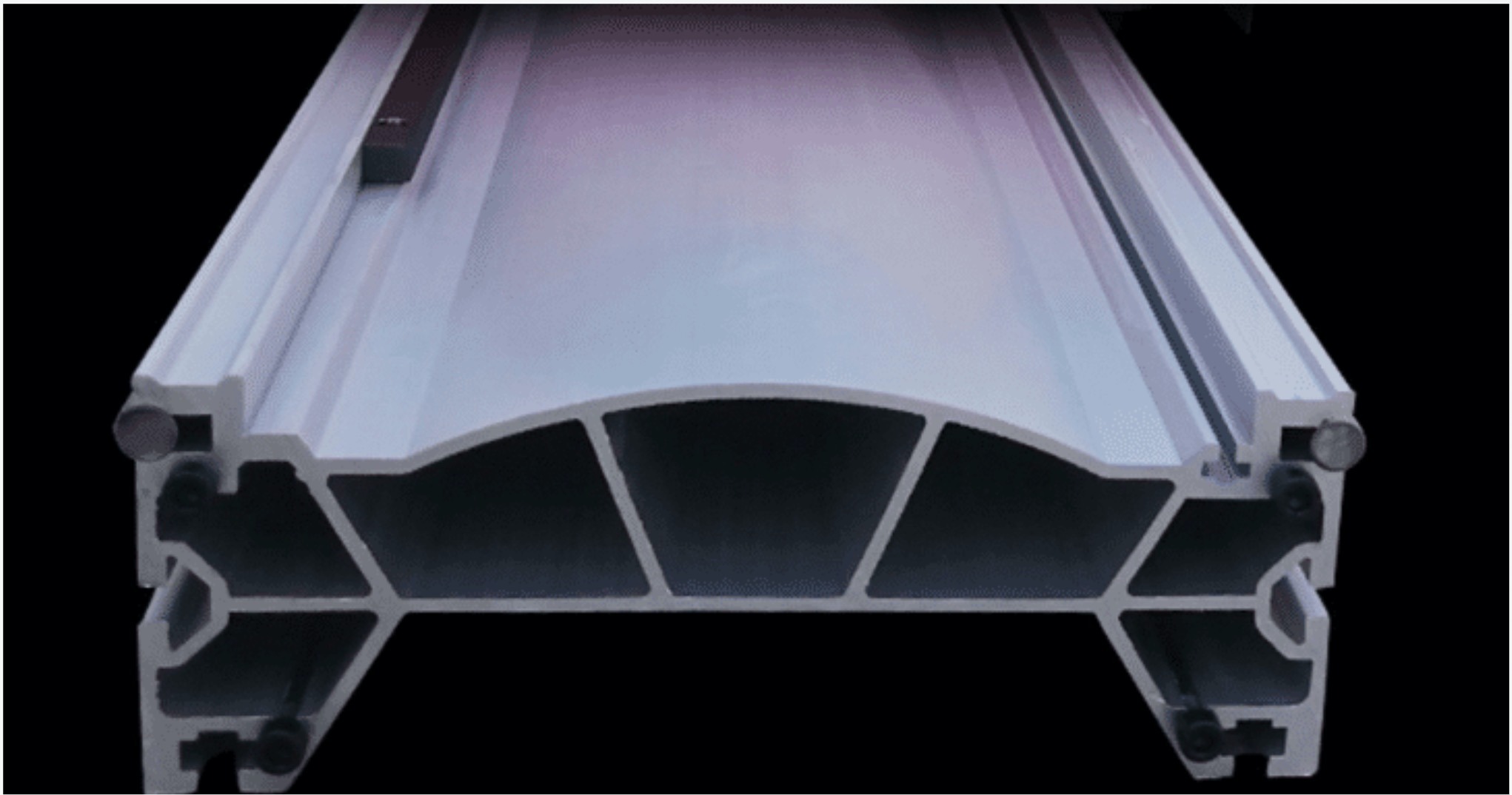

ADVANCED GUIDING RAIL:

X,Y-axises drive mode is optimized for ArcBro Scout. The introduction of guiding rail in the XY-axises of the machine, enables a more stable movement of the crossbeam and avoids the cutting head from declining.

ADVANCED SLIDINGBLOCK:

Using the high definition duo ball wheel slider, which is import from Taiwan,
ensures high precision, low noise, low friction. The slider as an international standard aluminum
alloy material, the surface through special treatment industry not only beautiful appearance and
strong resistance to rust, light quality.

BEAM STRUCTURE UPDATING:

The New design has the dual sliding blocks to guide the beam, while the old design without. And we also change the material of the wheel, the Steel instead of  the Nylon. Because of this, the machine is working more steady and precise than before.

SAFE BUTTON:

This feature allows the user to enable or disable the motors while power is on, guarantee the user’s safety

MAINTENANCE MORE SIMPLE:

Just open the machine cover, you will check the device, and the XY motor, everything become so easier.

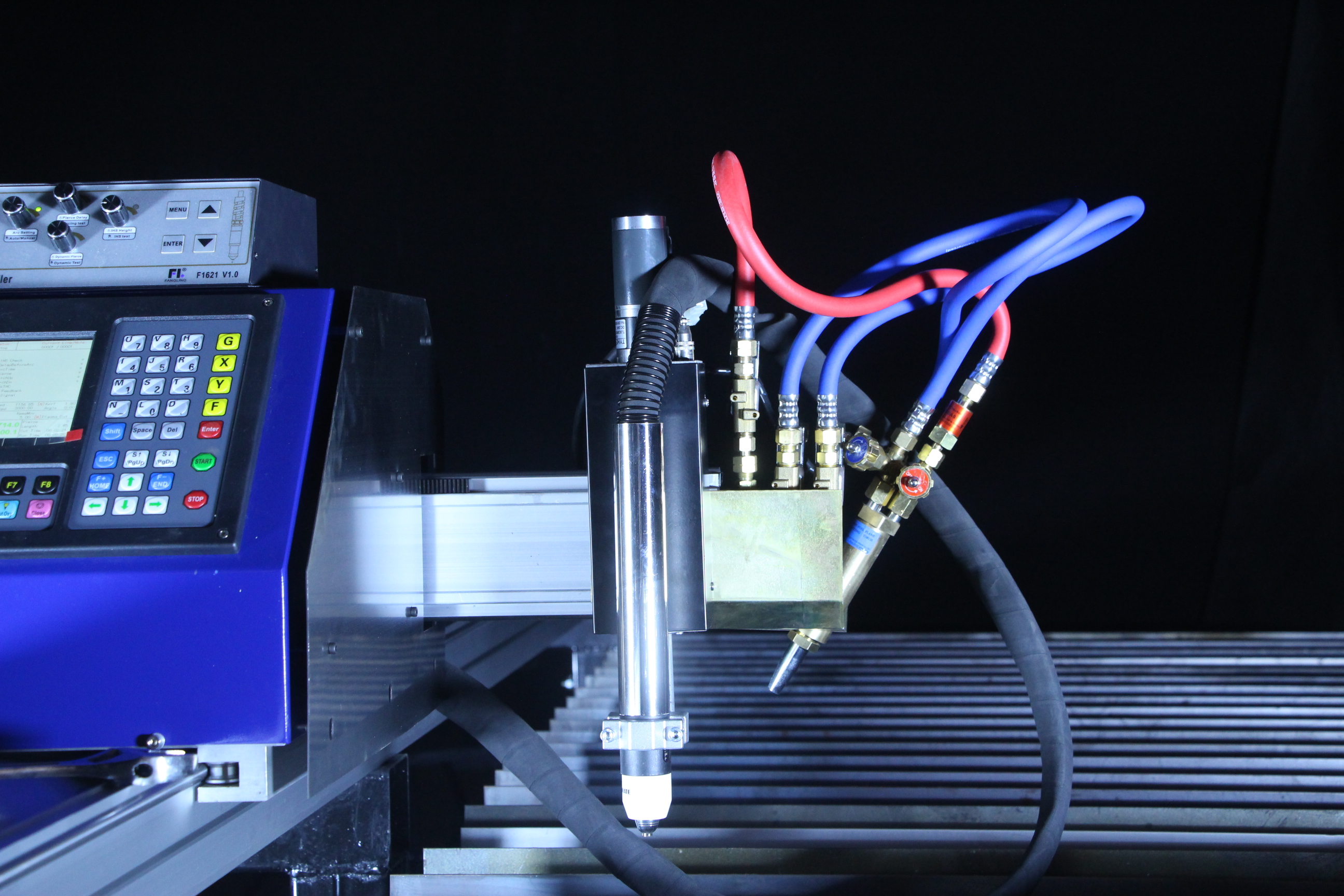

MOTOR TORCH AND XY BEVELING CUTTING HOLDER:

Now we have updated the Motor driven Torch instead of the Manual Torch, adjust the torch height using up down button ;
And now we also match the new torch holder, it can support XY beveling cutting both, while the old Manual holder only support Y beveling cut.

Standard Package :

  • Transversal Beam
  • Cross beam
  • Central Unit
  • Universal torch holder
  • Plasma cable holder
  • Nozzles for propane cutting torch
  • All necessary electrical cables
  • Memory key
  • SigmaNEST Companion™ Cutting Software
  • User’s manual in English/Spanish
  • Motorize torch controller
  • Auto Height Controller for flame and plasma (Optional)

arcbro scoutarcbro scout 3arcbro scout 2arcbro scout 4

Specifications

Rated Power 180W
Gross Weight 80.5KG
Cutting Capacity(Flame) 6mm~150mm
Effect Cutting Range X-Axis: 1,200mm, Y-Axis: 2,000mm, Z-Axis: Auto sensing or Motor Driver
Cutting Mode Flame or Plasma
Compulsive Gas Oxygen
Compulsive Gas Pressure Max. Pressure: 1.5MPa
Cutting Speed 0~600mm/min(Flame), 0~6,000mm/min(Plasma)
Working Voltage 220V AC/110V AC,   50/60Hz

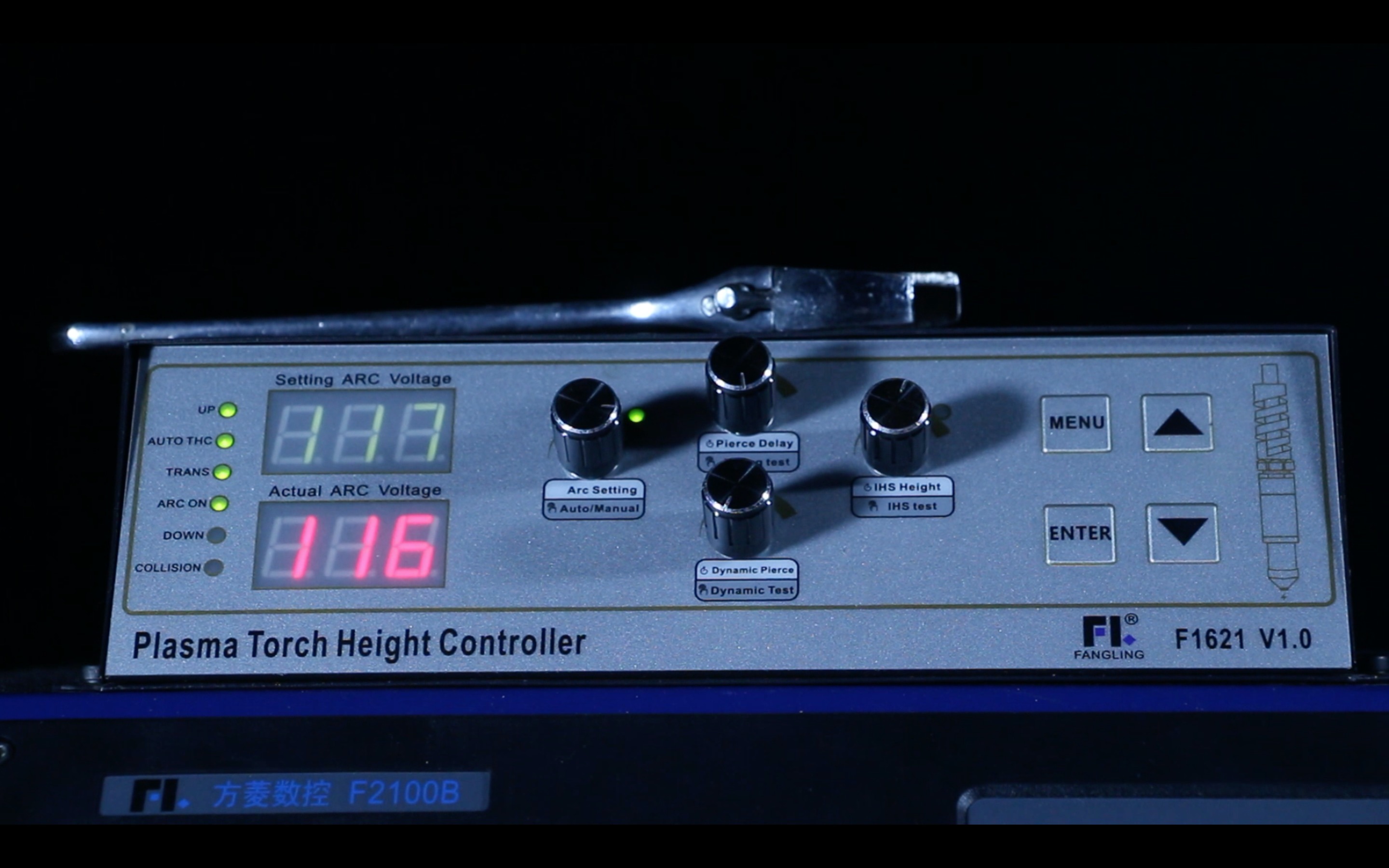

Torch Height Control AVC for Plasma; Mechanical THC for flame
CAM Software Fast CAM / MTC / IBE
Warranty Full 1 year warranty on electronics, parts and software;

Lifetime unlimited free technical support
