ARCBRO Stinger

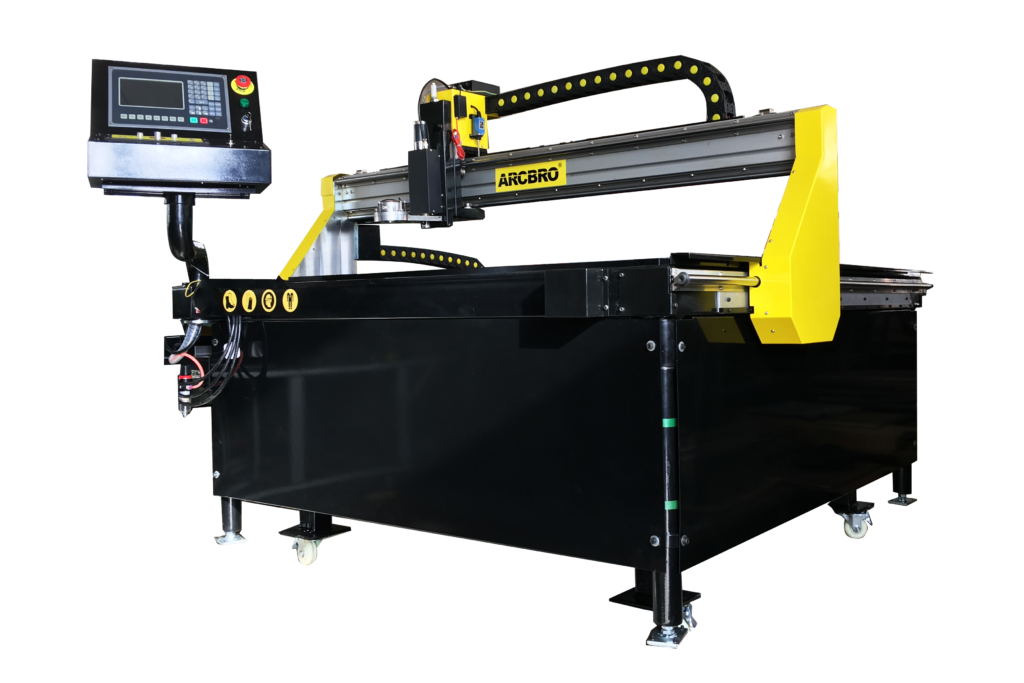

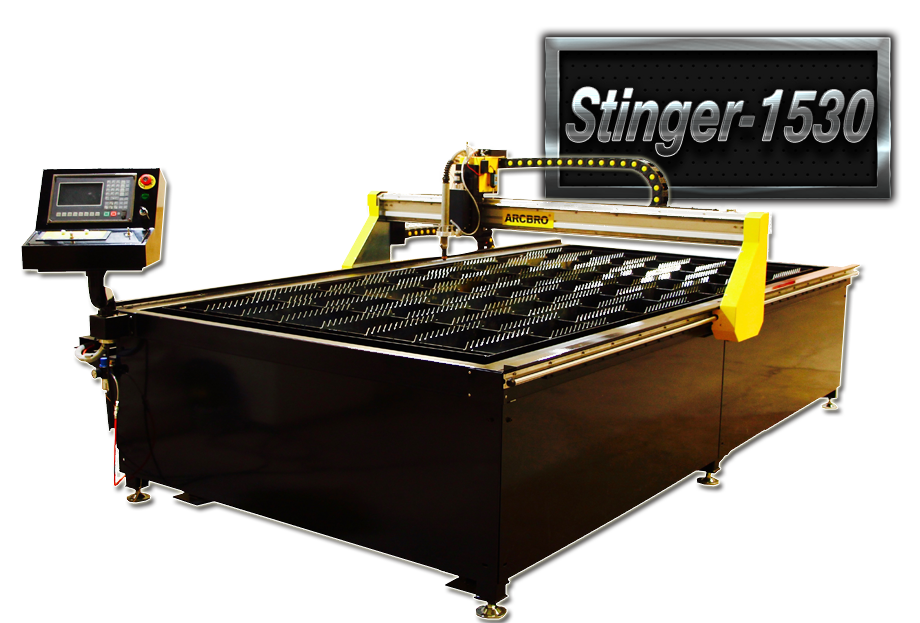

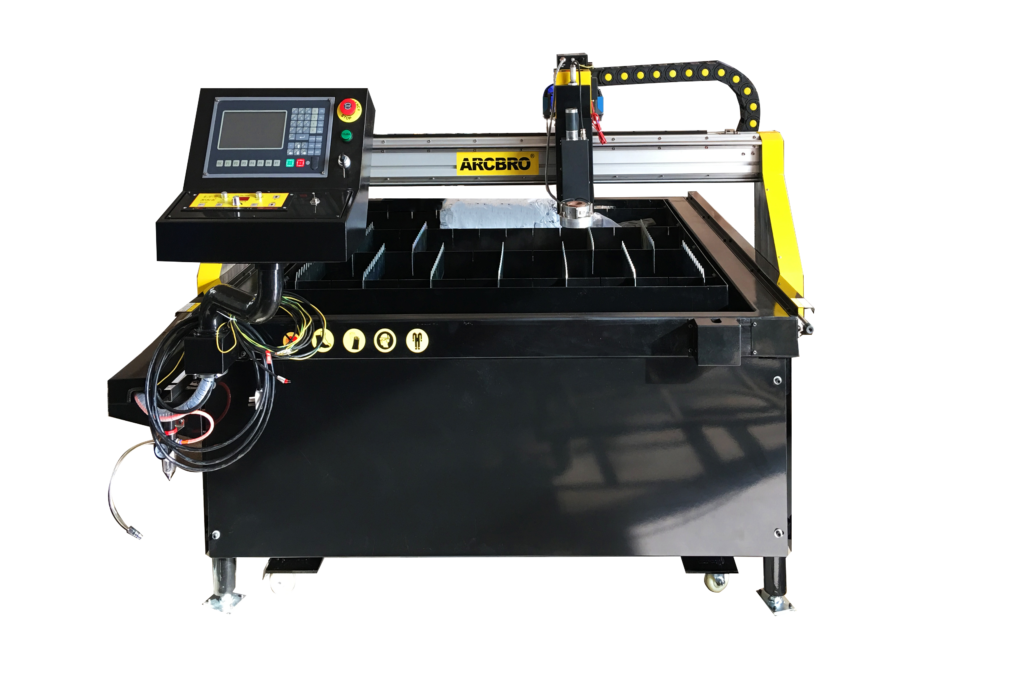

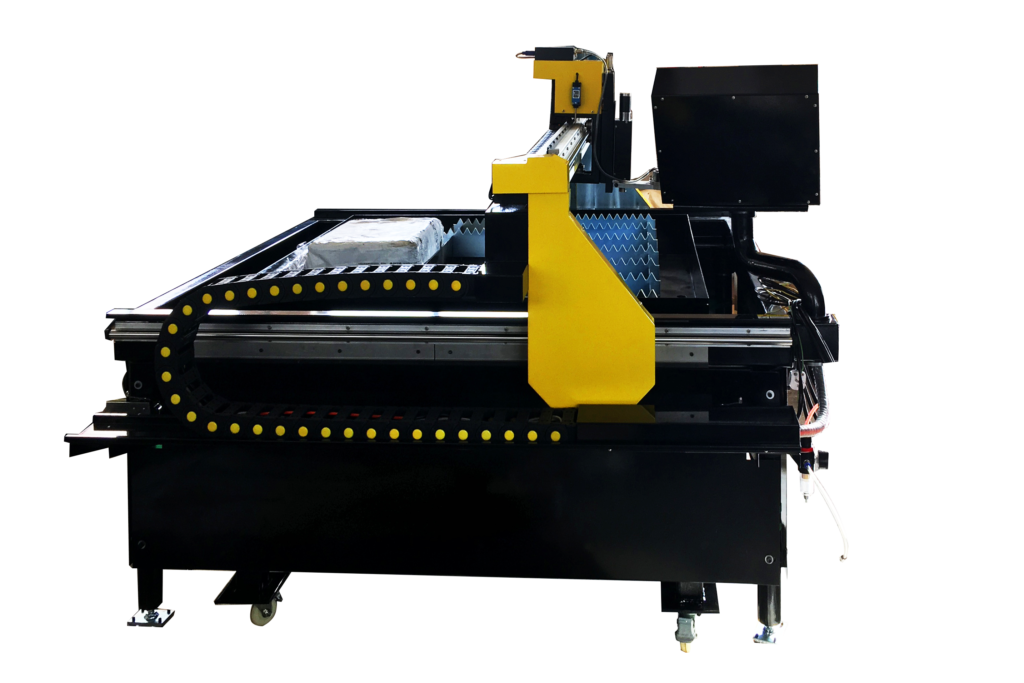

ARCBRO Stinger Bench Plate Cutter

Overview

 < Stinger | Standard Features >

  • Compact and Delicate Advanced design concept and excellent manufacture processing assure convenient operating experience and excellent cutting result.
  • TURE SYNCHRONOUS Transmission One high power servo motor drives one main shaft to achieve high speed and delicate movement of Y axis of two sides leading by two belts. Avoids most potential vibration, Stable enough for big cutting area.
  • Separable Modularization Structure The first divided CNC Cutter in the word. It’s integrated by different optimized forming modules. There are necessary component and optional ones to approach customer’s realistic needs freely. Thickness range: 0.1mm-35mm. Saving investment but getting highest performance.
  • V-Shape Wheel Positioning Solution improves the stability during the actual operation. The helical gear and rack with V-shape wheel positioning solution improves the stability of New Stinger during the actual operation.

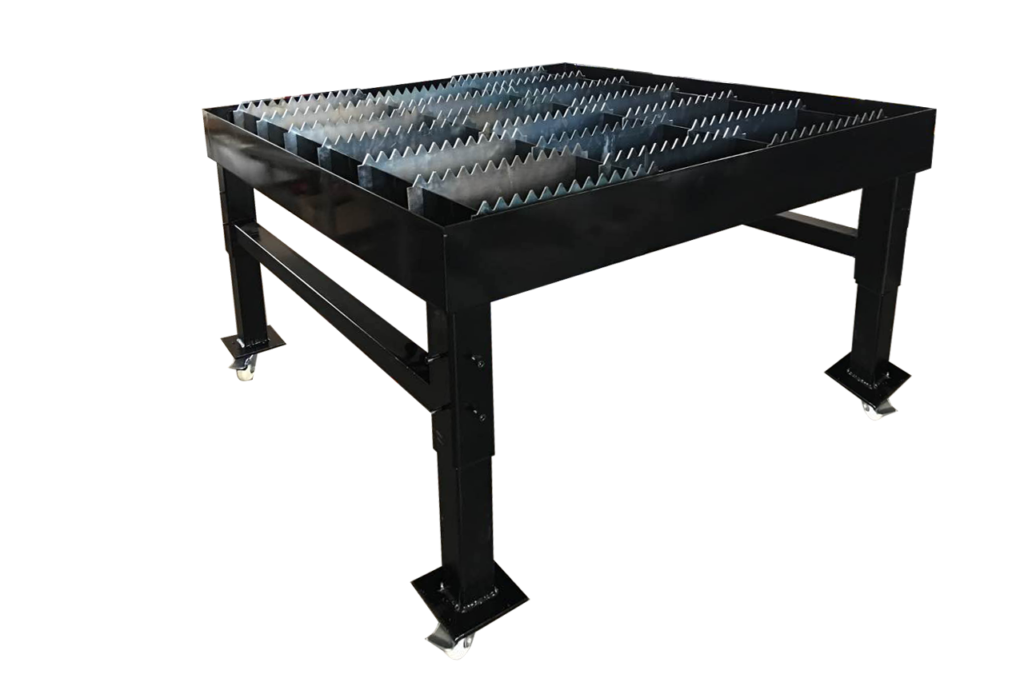

  • Friendly Loading Table Table height is higher than guiding rail system, easy loading process.

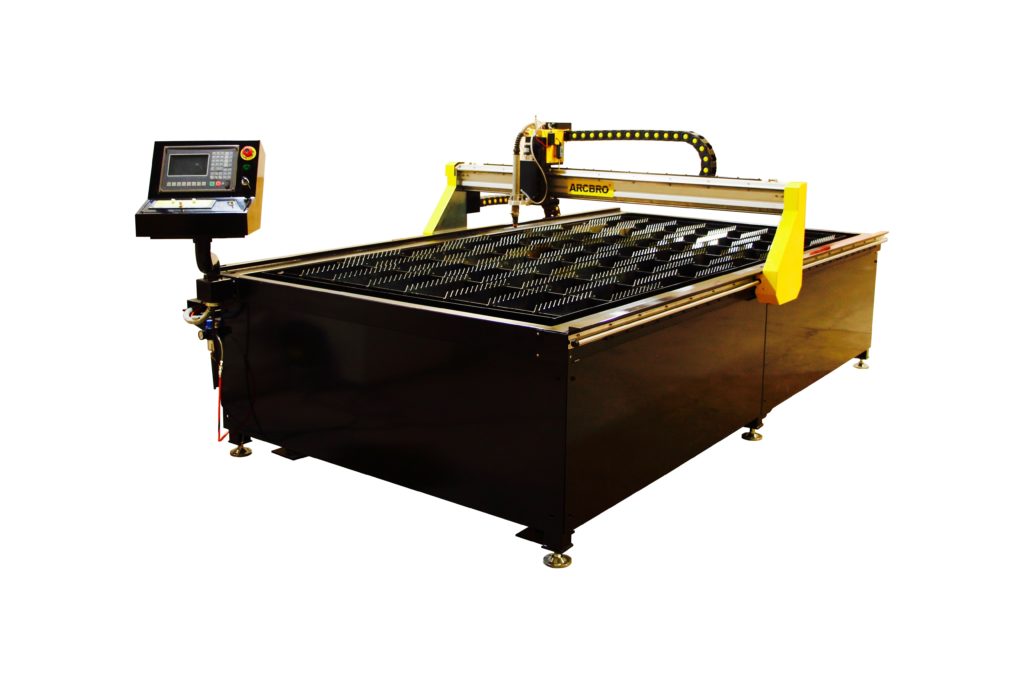

stinger cnc cutting table





Specifications

Cutting Area 800mm x 800mm

1000mm x 1000mm

1300mm x 1300mm

1300mm x 2500mm

1500mm x 3000mm

Input Voltage 110 V/220 V
Frequency 50Hz/60Hz
Cutting Speed 0~20,000mm/min
Cutting Thickness 0.3mm~30mm(Can be Customized)
Crossbeam Aluminum(60 x 145)
Plasma Power Solution ARCBRO AirCut, Hypertherm
Program Transmission USB
Weight 400KG



Sample Video

Download

Click PDF to save Brochure:

pdf icon
