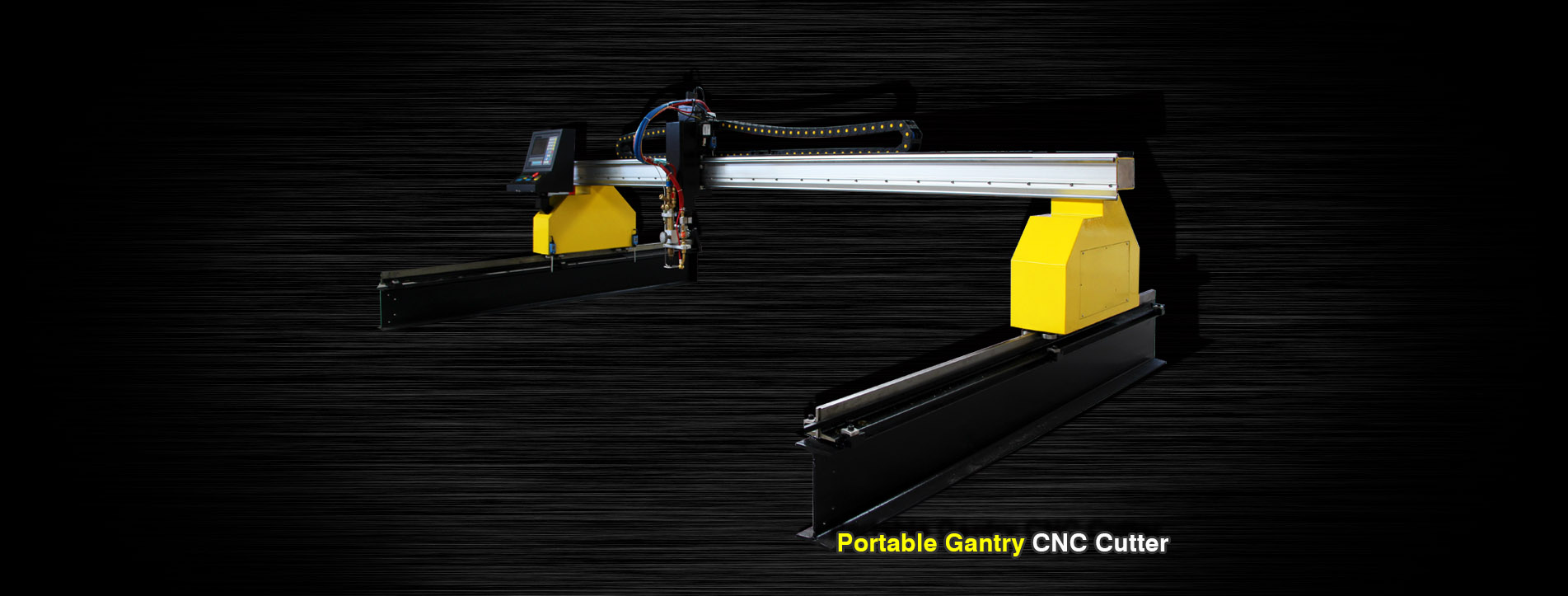

Thunder-X Pro Portable Gantry CNC Cutter
Overview
< Thunder X Pro| Standard Features >
- Thunder X Pro follows “Fast installation” conception, easy to installation and adjust, help you save assembly time.
- Equipped with flame and plasma two cutting torch, which mode you need, just use it instantly, high efficiency.
- Capacitive THC and ARC voltage THC mix structure, with water cooling system, because of this, can cut 0.3 mm thin plate and 30mm thick plate both.

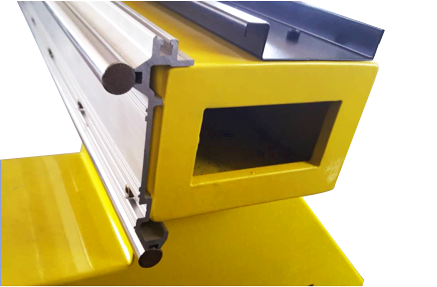

- Steel crossbeams & Φ16 axis, the standard cutting width is 3 meters and extendable.

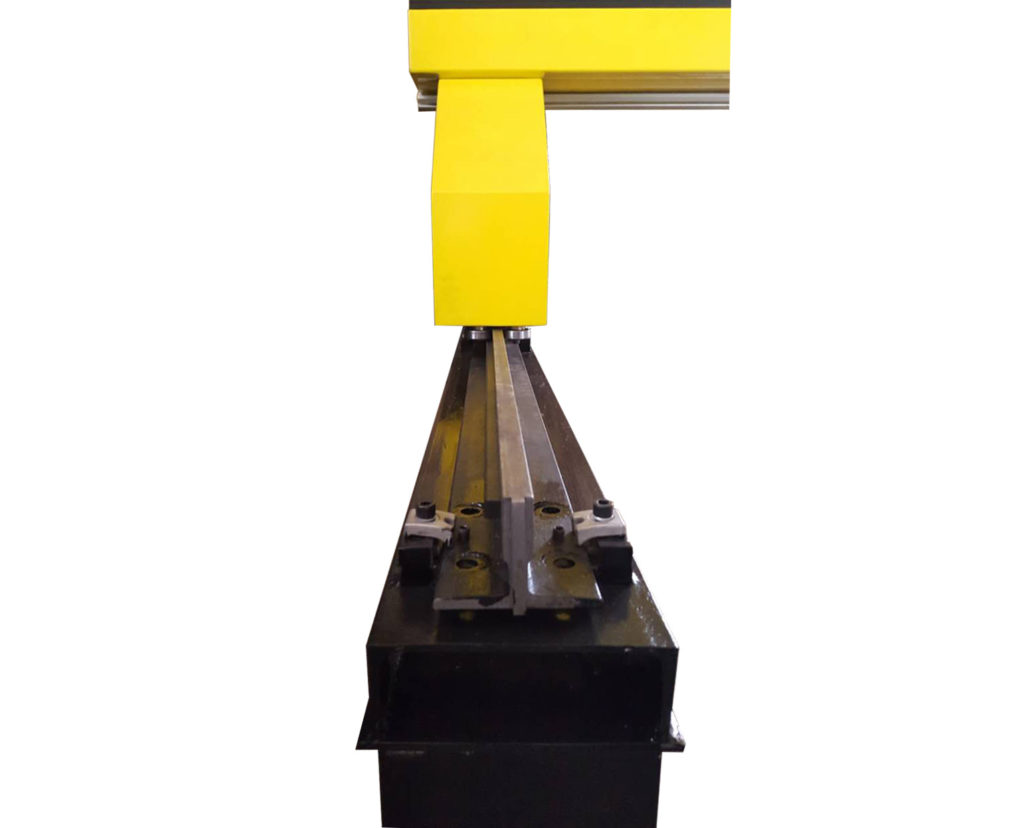

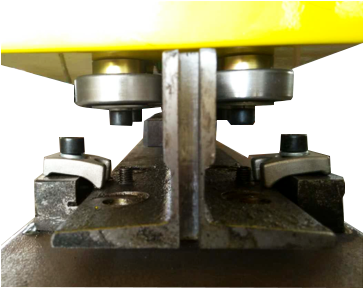

- Use elevator guide rail, easy to install and maintain, cost-effective, stable and reliable on working.
- Powerful motor drive, improve machine performance.
- High definition THC can be equipped with Hypertherm Maxpro or HPR series plasma source.
Specifications
| Input Voltage | 220V/110V (single phase) |
| Frequency | 50/60 Hz |

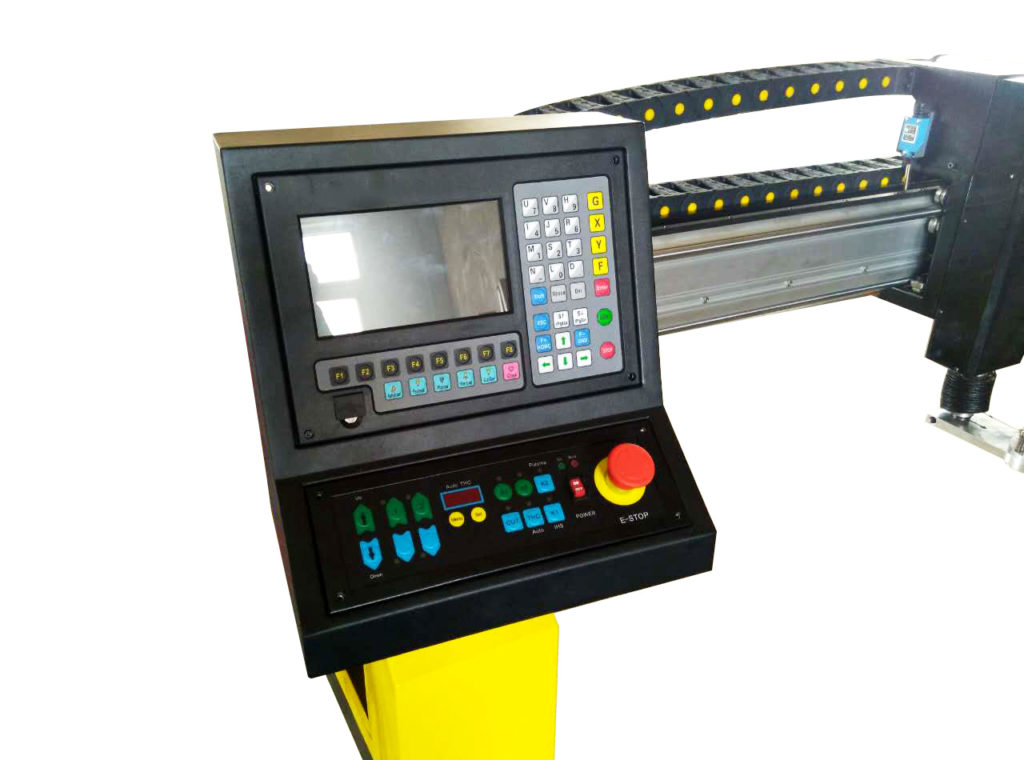

| Screen Size | 7″ colorful LCD |
| Cutting Size | Effective Length: 3,000mm, extendable |
| Effective width: from 3m to 4m, customizable | |
| Cutting Torch | One set plasma torch, one set flame torch |
| Cutting Speed | 0~12,000mm/min Max 24,000mm/min |
| Cutting Precision | 0.2mm |
| Cutting Thickness | Flame: 0~250mm |
| Plasma: Up to your plasma | |
| Drive Mode | Dual drive |
| Drive Motor | Encoder motor |
| THC | Capacitance/ARC |
| Software | ARCBRO Cutting Software |
