MULTI-LAYER, MULTI-PASS WELDING
- Path planning
- Independent / reverse execution
- Automatic trajectory saving
- Auxiliary-axis coordination
COMPLETE COBOT
WELDING
SOLUTIONS
Dealer partnerships welcome. OEM options available.
COBOT WELDING SOLUTIONS
Built for different applications. Select customization options available.
EXPAND YOUR LINEUP
WITH COBOT WELDING
REAL MARKET DRIVERS
SKILLED LABOR SHORTAGE
Growing demand for practical welding automation.
WELDING CONSISTENCY
More consistent weld quality across shifts and operators.
PRODUCTIVITY PRESSURE
More output from the existing workforce.
LOWER AUTOMATION BARRIERS
Robotic welding within reach of more fabricators.
ONE COBOT WELDING PLATFORM. THREE WAYS TO WELD.
01

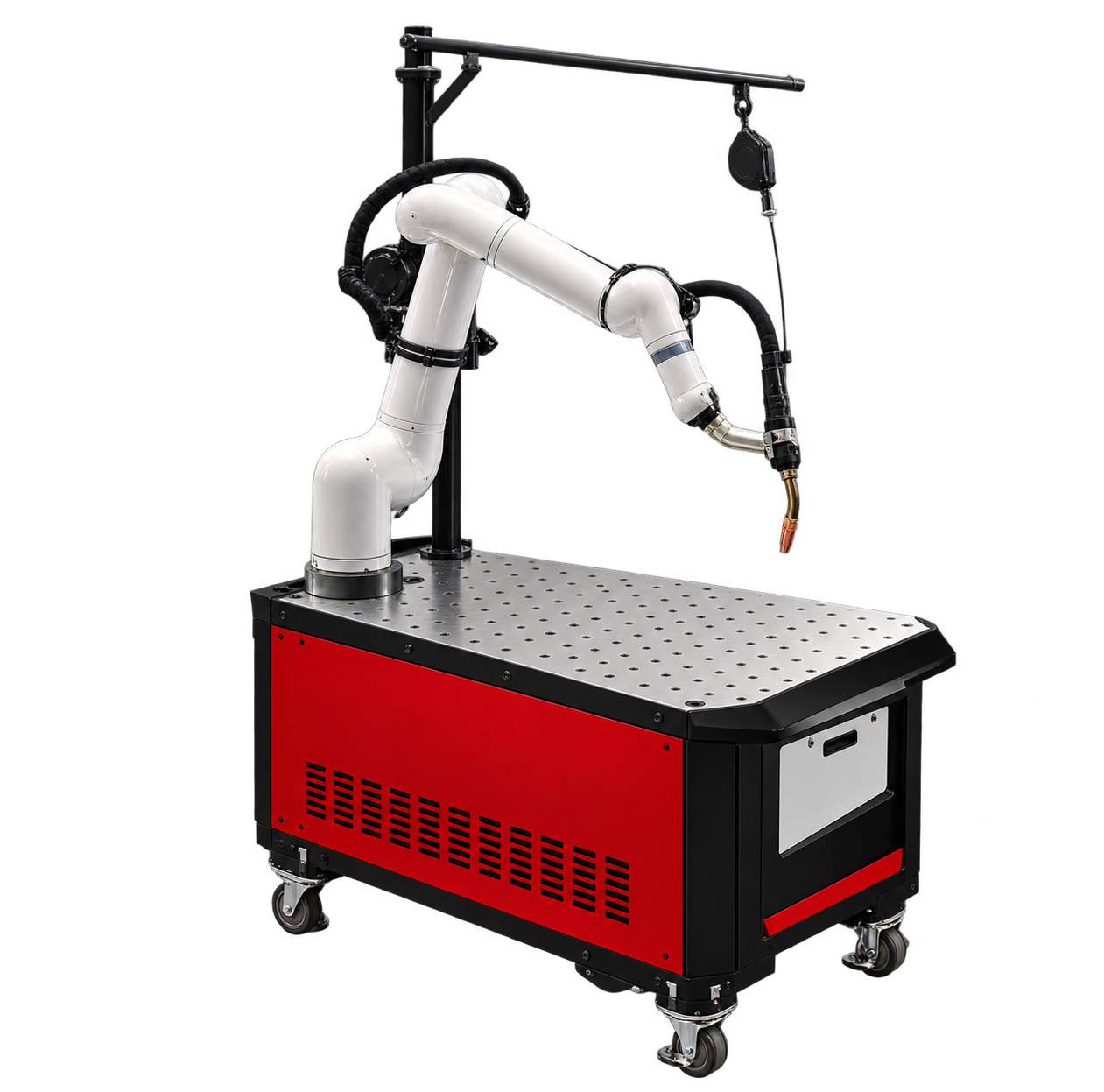

INTEGRATED COBOT
WELDING WORKSTATION
PRODUCTION-READY
The part comes to the station.
Bring repeat jobs to one integrated welding station, with a fixturing table for consistent setup and efficient production of small to medium-sized parts.
BEST FOR
Batch Welding | Fixtured Parts | Repeat Jobs
02

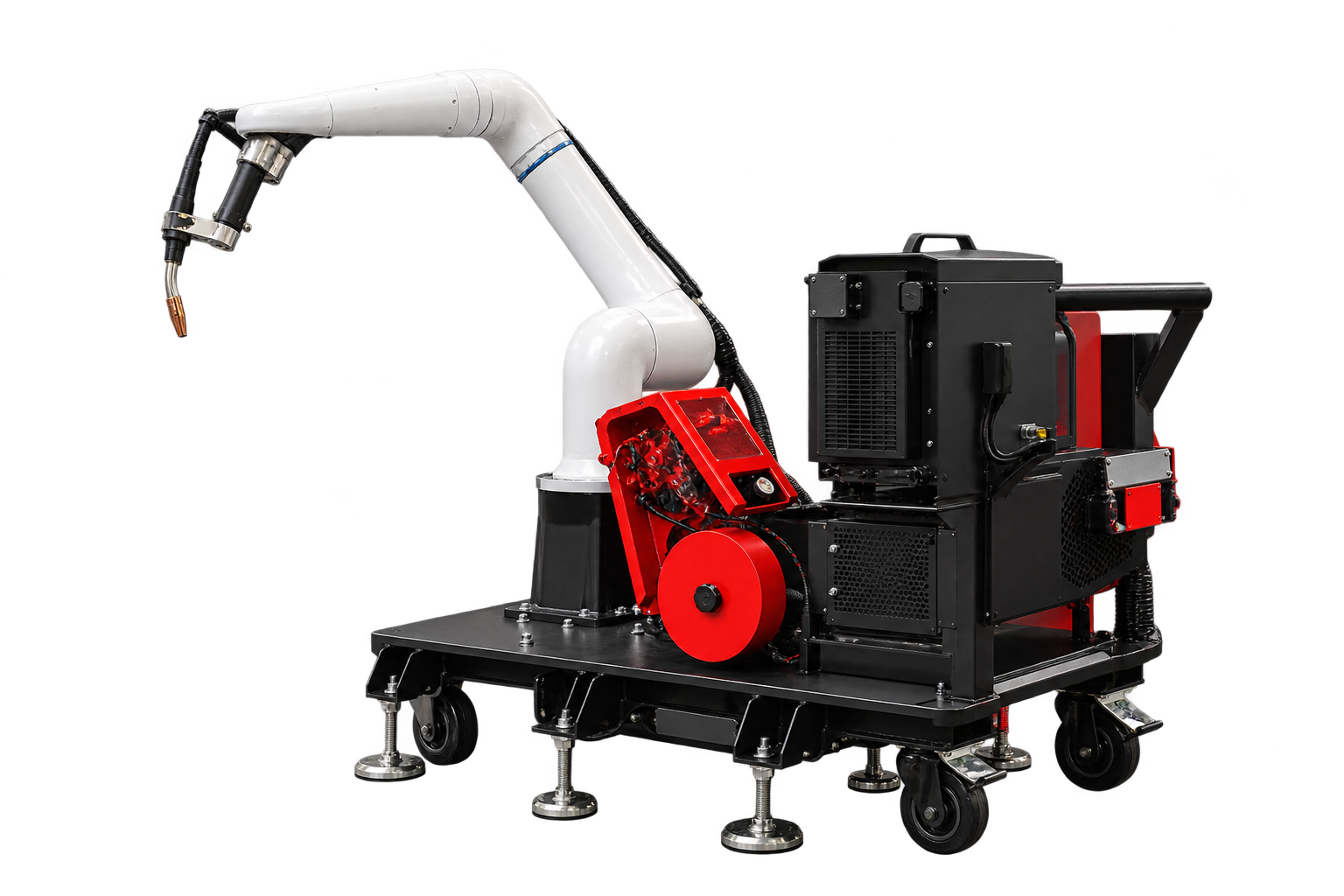

MOBILE COBOT
WELDING SYSTEM
FLEXIBLE DEPLOYMENT
The cobot goes to the part.
Take welding automation to large, heavy, or hard-to-move workpieces. Move between production areas as jobs and workflows change.
BEST FOR
Large Fabrications | Heavy Weldments | Multiple Work Areas
03

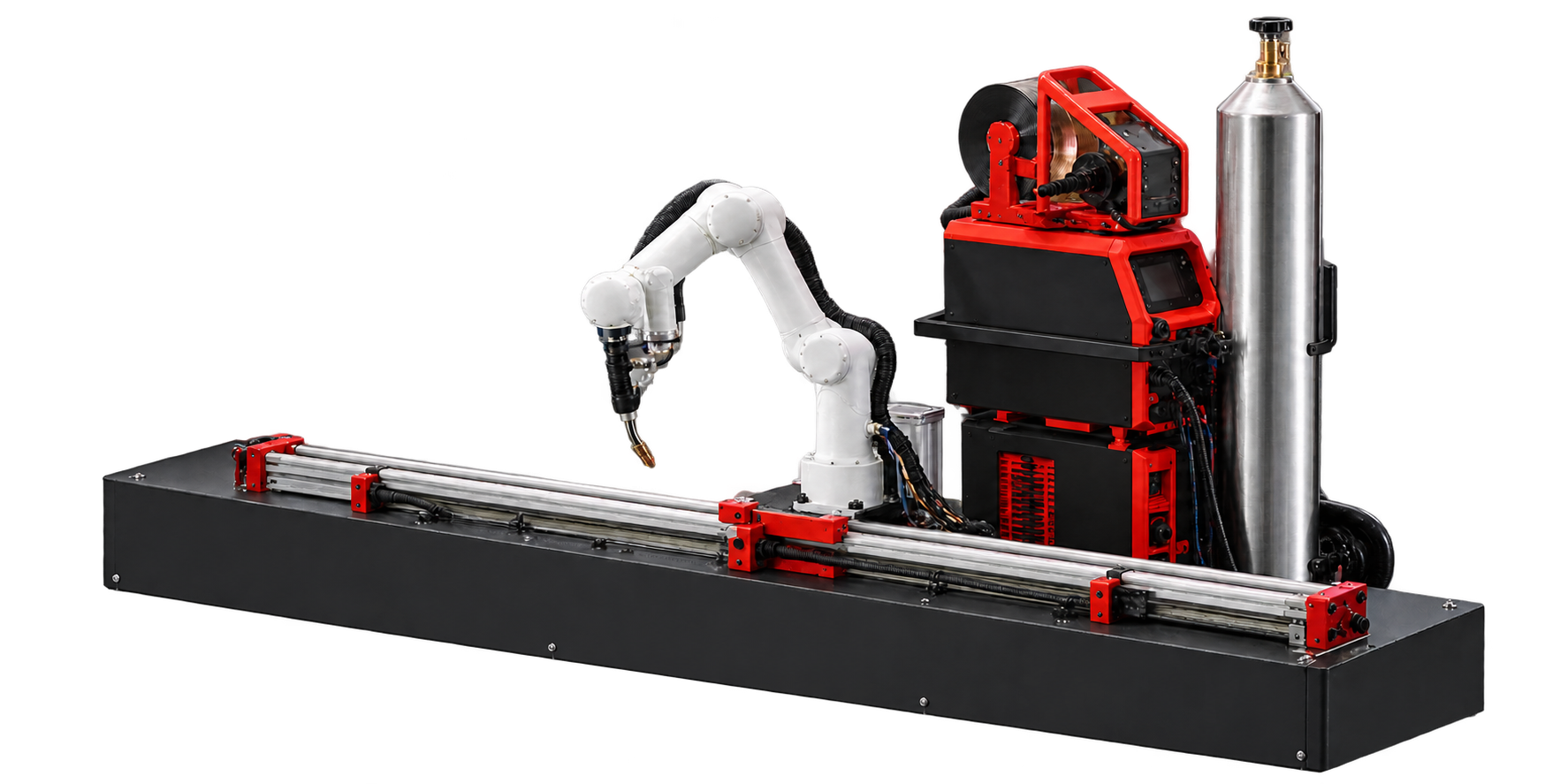

LINEAR TRACK SYSTEM
EXTENDED REACH
The cobot moves along the part.
Extend welding coverage to approximately 3.5 m with linear travel, accommodating long workpieces, extended seams, and larger fabricated structures.
BEST FOR
Long Beams | Frames | Long Weld Seams
SYSTEM CONFIGURATIONS & TECHNICAL SPECIFICATIONS
01
INTEGRATED COBOT WELDING WORKSTATION
Robot
CR12-14
Rated Payload / Reach
12 kg / 1,434 mm
Welding Platform
3D Welding Table
Workholding
D16: Ø16 mm / D28: Ø28 mm
Workstation Layout
Single Table
Welding Table Dimensions
1,200 × 900 × 20 mm
Base / Cart Dimensions
1,600 × 900 × 980 mm
Cart Weight
500 kg
Approx. System Weight
560 kg
02
MOBILE COBOT WELDING SYSTEM
Robot
CR20-18
Rated Payload / Reach
20 kg / 1,798 mm
Available Configurations
Basic / Framed / Fully Enclosed
Deployment
Ready to Go
Maximum Overall Length
3,400 mm
Cart Footprint
900 × 1,600 mm
Approx. Cart + Welding Power Source Weight
400 kg
03
LINEAR TRACK SYSTEM
ALUMINUM RAIL
Compatible Robot
SR5-09
Robot Quantity
Single Cobot
System Configuration
6+1 Axis System (7th Axis)
Linear Rail Type
Aluminum Rail
Typical Installation
Mobile Operation or Fixed Worktable
Cable Management
Small-Range Cable Dragging
Welding Coverage
Based on Rail Travel and Cobot Reach; Confirmed per Configuration
Effective Travel
2,000 mm
Rail Weight
37 kg/m
STEEL RAIL
Compatible Robot
SR5-09 / CR7-10 / CR12-14 / CR20-18
Robot Quantity
Optional Multi-Robot
System Configuration
6+1 Axis System (7th Axis)
Linear Rail Type
Steel Rail
Typical Installation
Fixed Floor Application
Cable Management
Drag Chain
Welding Coverage
Based on Rail Travel and Cobot Reach; Confirmed per Configuration
Effective Travel
From 3,000 mm, Expandable
Rail Weight
65 kg/m
COBOT OPTIONS & SPECIFICATIONS
| MODEL | PAYLOAD | REACH | ROBOT WEIGHT | REPEATABILITY | ROBOT ARM IP RATING |
|---|---|---|---|---|---|
| SR5-09 | 5 kg | 919 mm | Approx. 16.5 kg | ±0.03 mm | IP54 |
| CR7-10 | 7 kg | 988 mm | Approx. 25 kg | ±0.02 mm | IP67 |
| CR12-14 | 12 kg | 1,434 mm | Approx. 41 kg | ±0.03 mm | IP67 |
| CR20-18 | 20 kg | 1,798 mm | Approx. 71 kg | ±0.05 mm | IP67 |
MAXIMUM COORDINATED AXES
UP TO 6+4
MAX. 7TH-AXIS TRAVEL SPEED
6,000 MM/MIN
7TH-AXIS SERVO
750 W ETHERCAT SERVO DRIVE WITH BRAKE
ADVANCED WELDING FUNCTIONS
02
LASER SEAM TRACKING
- Linear path tracking
- Triangular / sinusoidal weaving tracking
- Width-adaptive tracking
- Linear-track / auxiliary-axis coordination
03
ARC SEAM TRACKING
- Combined-path tracking
- Linear-track / auxiliary-axis coordination
- Adaptive arc tracking
