Tube PRO

CNC PIPE PROFILE CUTTING MACHINE

Overview

ArcBro Tube Pro was designed and developed to increase production and improve accuracy for your pipe cutting needs. Cutting tube diameter between 50 to 400mm (maximum 600mm),Ideal for use in food processing, construction, pipe frame, light industry. Our innovative infinite rotation cutting head, Hypertherm’s plasma systems, the Libellula Tube software, and our small footprint design are combined to produce one of the industry’s best pipe cutting machine.

Standard Features

Effective cutting size: φ30-600mm, 3000/6000/12000mm long
4-axis
Starfire SF-5210XG system
HYD PTHC200DC-PT
Infinite rotation structure
Fastpipe 4-axis software
Leisai 86/57 servo motor
Silver-plated square rail

CLICK HERE TO REQUEST A QUOTE!

VIDEOS

SEE MORE VIDEOS

Advantage

PRECISION CUTS WITH PERFECT BEVEL

The patented INFINITE ROTATION SYSTEM™ with freedom of movement in tilt and rotation can precisely cut straight through and create bevels up to a 45 angle. Arcbro uses the minimum amount of axes with precise eclectic motors to cut accurately every time.

The patented infinite rotation system™ with freedom of movement in tilt and rotation can precisely cut straight through and create bevels up to a 45 angle.

SUPERIOR MOTION CONTROL

The outstanding motion control system and unique mechanical structure bring you a variety of difficult tube cuttings that can be done easily and concisely.

THREE-JAW CHUCKS ensure flexible loading.

The universal wheel makes the cutting of the pipe any position simple and easy.

Click here to learn more informations before you get TUBE PRO.

TECHNICAL INFO

SPECS
DATA SHEETS

Type	Tube Pro
Effective diameter area (mm)	φ25-φ600mm
Longitudinal travel	>=3000mm(10ft), as long as you want
Bevel angle	Manul bevel/Auto bevel =<45º
Input voltage	Single phase, 110/220V
Power frequency	50/60Hz
Cutting mode	Plasma cut (Flame cut is optional)
Plasma power source	Air plasma power source optional
Driver motor	Hybrid servo drives
Groove	Infinite rotation
Cutting speed	1~6,000mm/min
Running speed	1-8000mm/min
THC	Arc Voltage THC & Pneumatic THC (capacitive THC is optional)
Internal library	shape library
Language	English, Chinese, Spanish, Russian, French, Japanese, Czech, etc.
Temperature	1-40°C (34-104 °F)

Tube PRO Brochure

Learn More Our Customer Talk About Tube-Pro

Bevel cutting increase the contact area of the pipe surface and easy to welding

Tube-Pro: One of CNC Plasma Cutter Business Ideas

TUBE S

Pipe OD: 25 - 120 mm
Round & Square Pipe
Standard Length: 3 m / 6 m

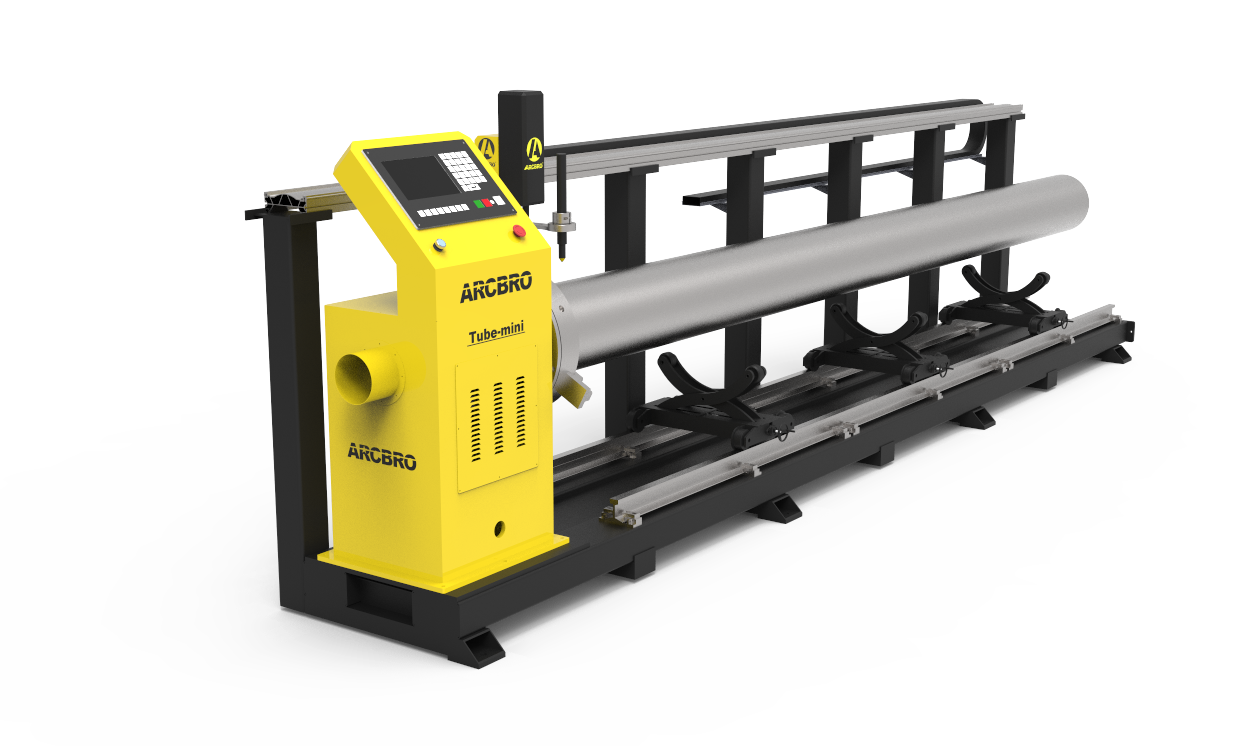

TUBE MINI

Pipe OD: 50 - 300 mm
Arc Voltage Height Control
Standard Length : 3 m / 6 m

ARTILLERY

Pipe OD: 50*50 to 400*400 mm
CNC Square Pipe
Standard Length: 16 m (can be customized)
