X MINI
CNC GANTRY PLASMA/FLAME CUTTING MACHINE

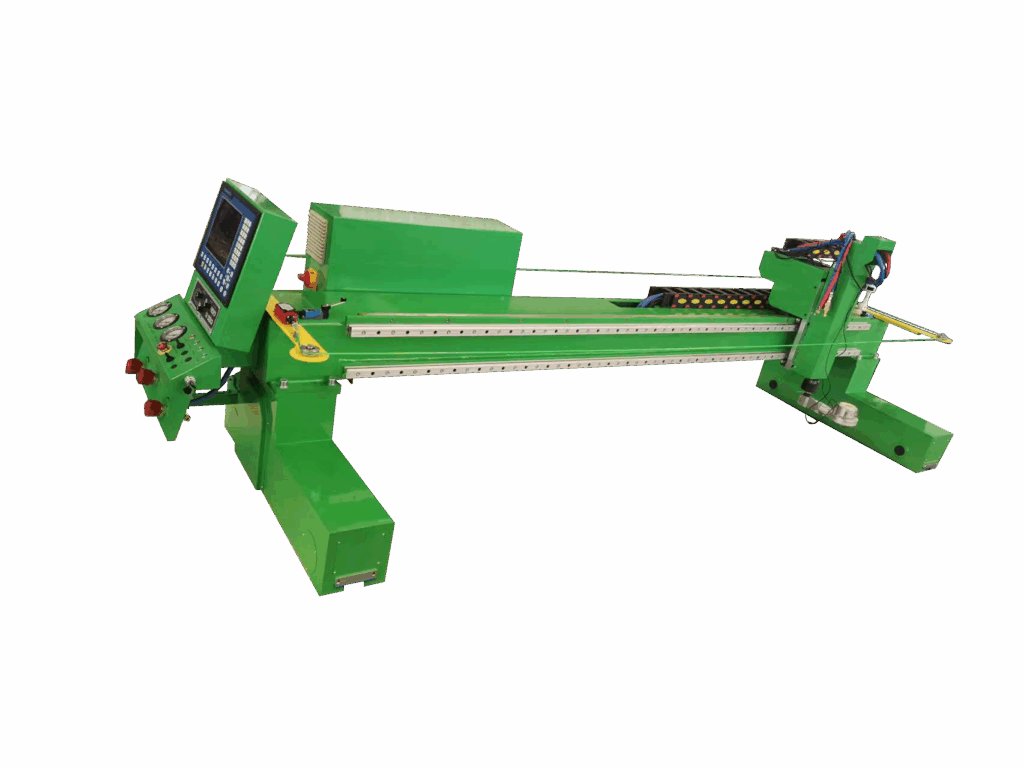

CNC cutting machine X MINI is a gantry structure. Adopt high-precision rack and pinion, compact. With the Leadshine Smart servo motor, 400w x 3, precise smooth running.
It can greatly help customers improve productivity, support the plasma and flame modes, have high precision, easy operation, and absolutely durable.
Two cutting mode optional for diversified metal thickness:
Flame Cutting Thickness
150mm (can be updated to 200mm flame torch)
Plasma Cutting Thickness
Piercing cutting 35 to 40mm base on different plasma sources
A powerful upgrade! Replace the aluminum beam with stronger and stronger steel. A new type of triangular structure aluminum die has been added with a patent.
- Stable output with Shape library, directly select and do cut. Support both flame and plasma cutting modes.
Modle | X MINI |
Cutting Mode | Flame and plasma automatic cutting modes |
working plasma source | up to 200A |
Driving Mode | Leadshine Smart servo motor, 400w x 3 |
Height Control | Arc-voltage height control; Capacitance height control for flame |
Flame Cutting Thickness | 150mm (can be update to 200mm flame torch) |
Plasma Cutting Thickness | Piercing cutting 35 to 40mm base on different plasma sources |
Moving speed | 10m/min |

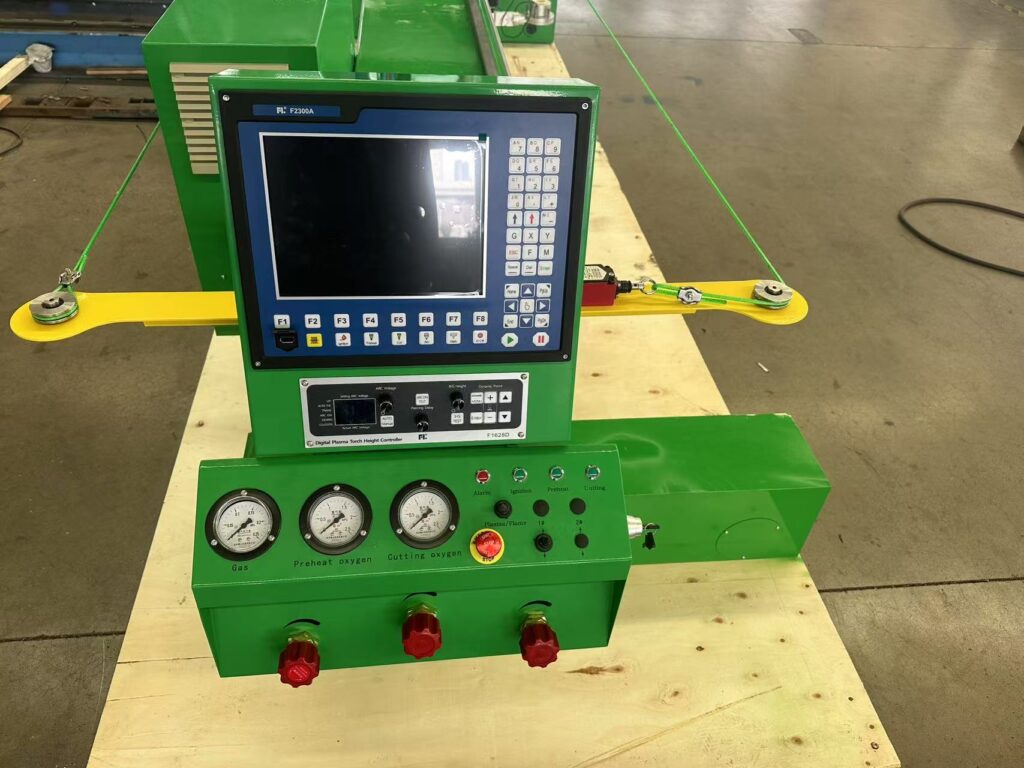

Display | F2300B |
Nesting software | Fastcam Pro |
Input Voltage | 220V single phase |
Cutting Gas | Propane |
Tolerance | Cutting tolerance ≤ 0.5mm |
