ELF-D

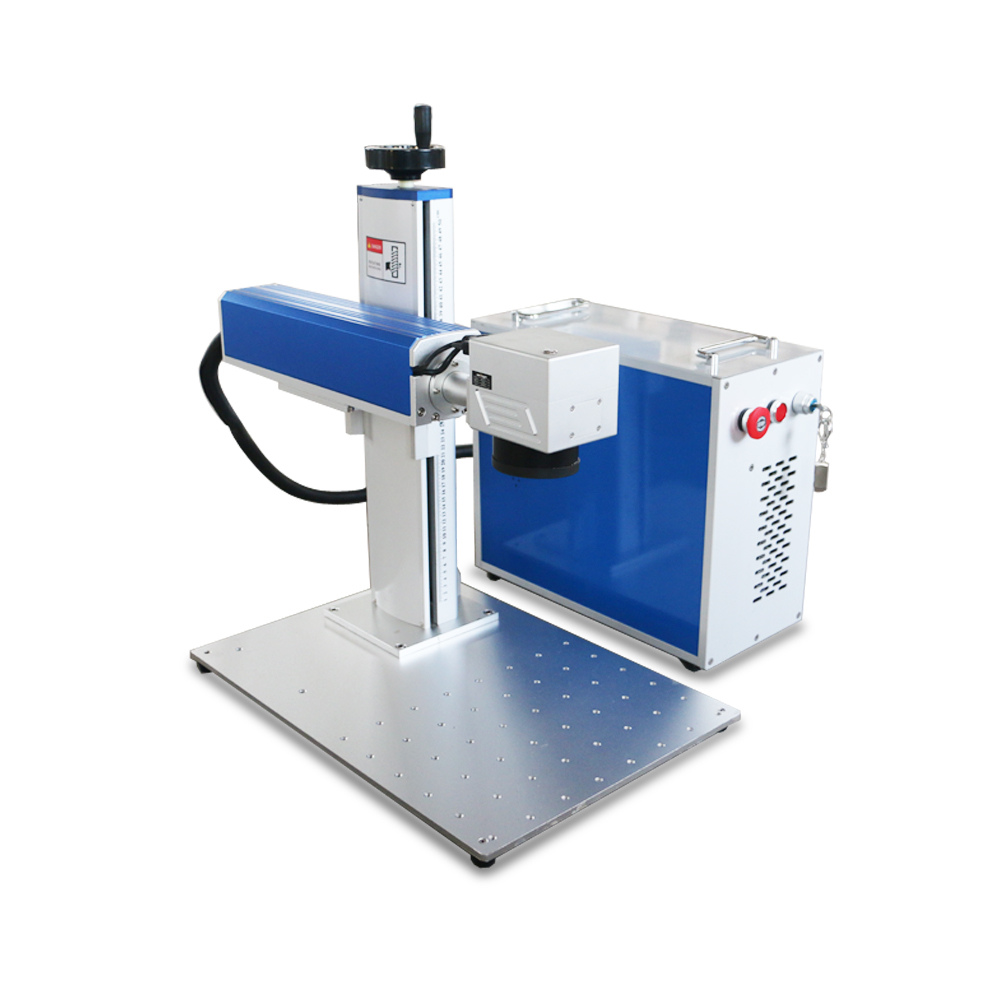

20W/30W/50W/100W Desktop laser marking machine

Overview

In molds, signs, hardware accessories, advertising boards, car license plates and other products, the traditional corrosion process will not only bring environmental pollution, but also low efficiency. The traditional process of deep engraving such as machining, metal waste and coolant will also bring environmental pollution. Although the efficiency is improved, the accuracy is not high, and sharp corners cannot be engraved. Compared with the traditional method of metal deep carving, ARCBRO Laser’s fiber laser metal deep carving has the advantages of pollution-free, high precision, flexible engraving content and meeting complex engraving processes.
30W CO2 fiber laser marking machine adopts imported encapsulated CO2 laser, equipped with Germany high-speed scanning vibrator and beam expansion focusing system, using infrared light band, marking accuracy is high, fast;ZJ-2626A laser height can be adjusted up and down, easy to use, can replace the lens of various marking format;Long continuous working time, clear and beautiful marking, powerful software function, can be marked by running number, flight marking;Fixed laser marking design, simple operation, perfect upper and lower ventilation system, environmental protection and safety work.

Advantage

Movable: With 4 caster wheels, suitable for mobile working environments;
Large space; The space on desk provides platform for different size material marking;
Standout performance: High marking quality with high speed(up to 7000mm/s); 2: 3 times higher than traditional marking;
Long Lifetime: advanced laser generator, lifespan is 100,000h;
Easy operation: Marking software preinstalled and machine parameters pre -set, plug and play.

Superior Machinery, every set is heat treated processed !

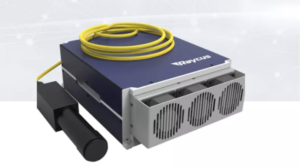

LASER BRAND	Raycus.(JPT.IPG optional) With high average power High peak power 2-500ns multiple puse width optional
LASER BRAND	Raycus.(JPT.IPG optional) With high average power High peak power 2-500ns multiple puse width optional

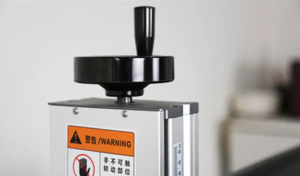

LIFTING HANDLE	The focus can be precisely adjusted up and down Insulation material is wear-resistant and durable Long life of lifting shaft

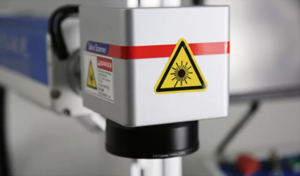

LASER GALVANOMETR	Raycus.(JPT.IPG optional) With high average power High peak power 2-500ns multiple puse width optional

Applicable fields !

TECHNICAL INFO

Model	ELF-D
Marking Area	100100mm-300300mm(Option)
Working voltage	0.5KW/AC220V/50Hz(option)
Lifting pillar	500mm(customize)
Cooling system	Air Cooling
Working environment	0~35°C humidity≤90%
Minimum character	0.1mm
Repeatability accuracy	0.003mm
Max Marking Depth	1mm (based on different laser power and material)
Resolution	0.001mm
Marking speed	0-7000mm/s
Laser modulation frequency	20kHz~80kHz
Output laser power	20w~50W
Laser wavelength	1064nm
Laser source	MAX/Raycus/JPT laser source
Warranty	2 years for whole machine
After Warranty Service	Video technical support, Online support
Application	Marking on metal, copper, stainless steel, hard plastic, animal ear tags, metal tags, dog tags and so on
Machine's advantages	Easy to use, not need too large space
Gross weight	50kg
Packaging size	680420490mm
Option	65/69/80 rotary axis, cutting table, conveyor belt and other customized parts
