CNC PLASMA POWER SOURCE
ARCBRO | 130HD
HIGH-DEFINITION PLASMA POWER SOURCE

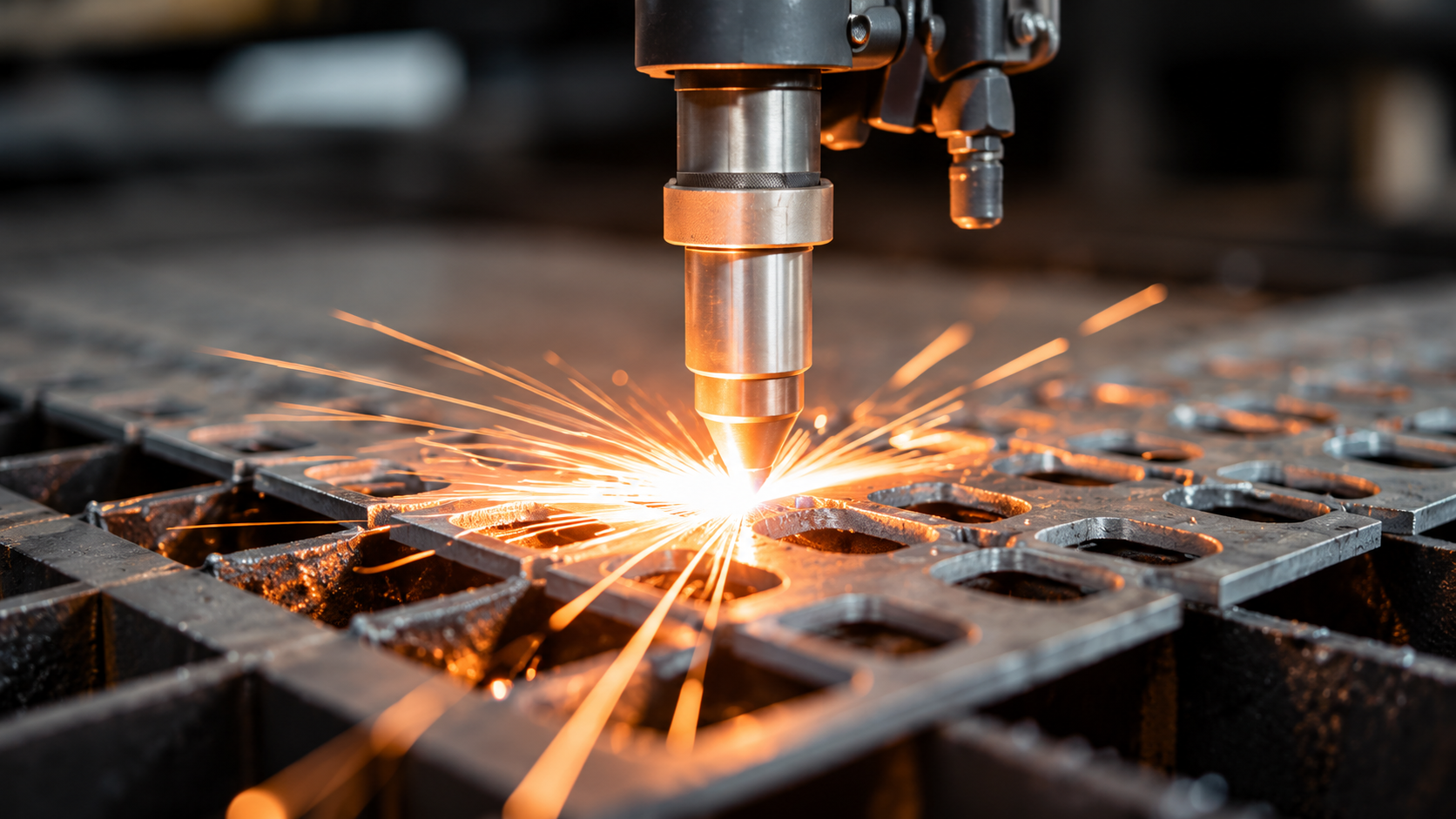

The ARCBRO 130HD delivers 130A of high-definition plasma cutting power, designed for CNC plasma cutting tables. It provides clean, consistent cut quality and strong production performance for a wide range of materials.
High-Definition Cutting Quality
130A Powerful Output
Designed for CNC Integration
Reliable & Stable Performance
130HD
Cutting Performance
The ARCBRO 130HD delivers high-definition cut quality and strong production performance.
16 mm
Dross-Free Cut Capacity
Mild Steel
30 mm
Production Pierce
Mild Steel
ISO 9013
Range 2–4
Cut Angle
Cut-angle quality
30 – 130 A
Process Amps
Plasma process range
MILD STEEL PROCESS GASES
O₂ / Air · O₂ / O₂ · Air / Air
RESOURCE USE & PROCESS CAPABILITY
Efficient Performance for
Mid-Thickness Production
For 10–20 mm mild steel applications, the 130HD balances cutting performance with practical power demand and gas consumption, helping fabricators control operating costs while maintaining stable production quality.
Typical Resource Use
10–20 mm mild steel cutting conditions
130HD Plasma
6 kW Fiber Laser
O₂ Flow
~2.0 m³/h
~6.0 m³/h
Power
Demand
~25 kW
~38 kW
O₂ Consumption
at 12 mm
~15 L/m
~53 L/m
O₂ Consumption
at 20 mm
~31 L/m
~125 L/m
Up to
75%
Less Oxygen / Meter*
≈87% Lower
Estimated Cutting Cost / Meter at 12 mm*
≈89% Lower
Estimated Cutting Cost / Meter at 20 mm*
Process Capability
MILD STEEL PROCESS GASES
O₂ / Air · O₂ / O₂ · Air / Air
PRECISION PLASMA SOURCE
A dedicated precision plasma source for practical mid-thickness carbon steel production.
10–20 MM CARBON STEEL CUTTING
Designed for fabricators who regularly cut 10–20 mm carbon steel.
* Indicative comparison based on defined cutting conditions and calculated from published process data. Actual gas consumption, power consumption and cost per meter may vary depending on operating conditions.
HIGH-DEFINITION PLASMA POWER SOURCE
The ARCBRO 130HD combines strong cutting performance with excellent cut quality. As shown in the actual cutting samples below, the cut edges are clean, smooth and consistent on both the front and back sides.
Extensive Application
The ARCBRO 130HD is designed for a wide range of cutting applications.
Metal Fabrication
Steel Processing
Machinery
Manufacturing
Stainless Steel
Processing
Aluminum
Processing
DISCUSS ALL AVAILABLE OPTIONS TO ACHIEVE YOUR GOAL!
Our team is ready to help you find the best plasma cutting solution for your business.

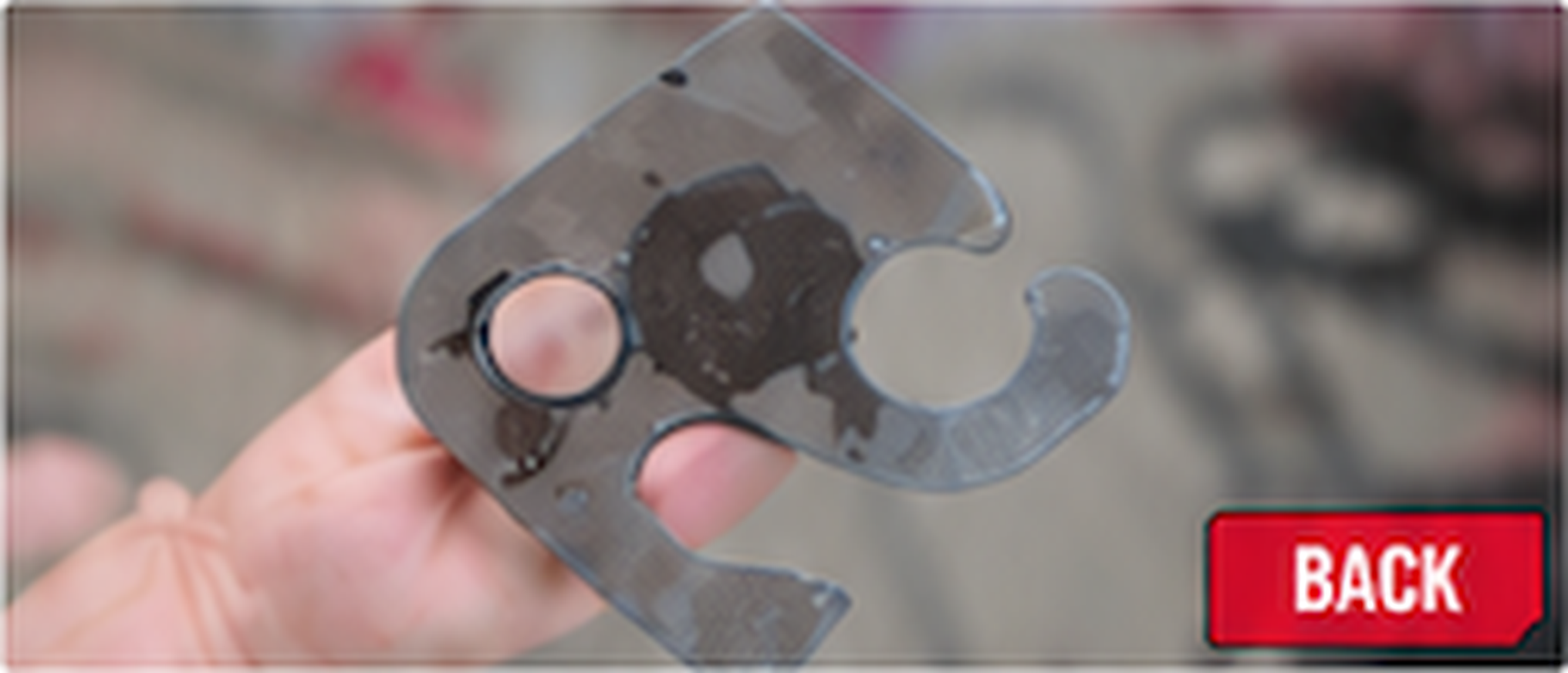

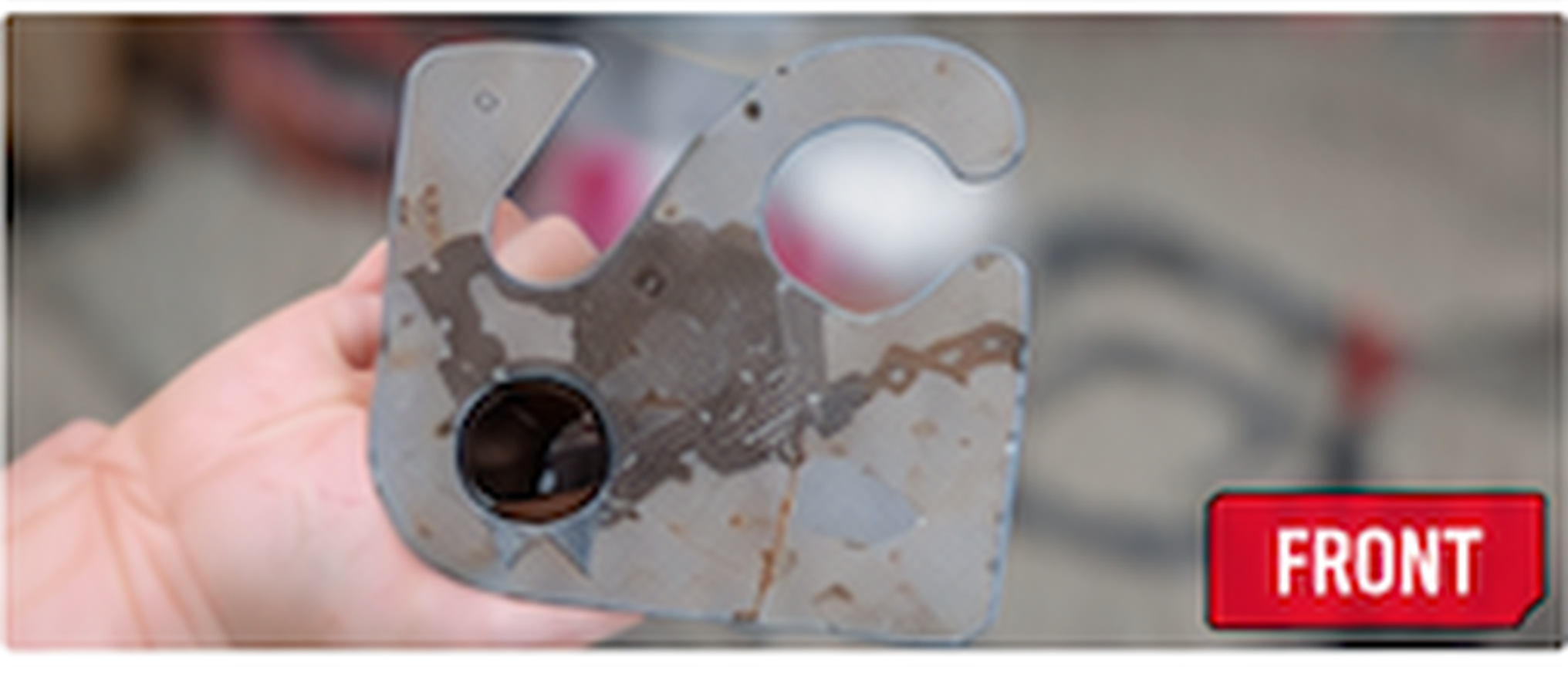

The ARCBRO 130HD delivers excellent cut quality. As shown in the actual cutting samples, the cut edges are clean, smooth and consistent on both the front and back sides. This visible cut quality gives distributors and end users a clear product advantage.
| Material | Cut Capacity | Thickness |
|---|---|---|
| Mild Steel | Dross-Free Cut | 16 mm (5/8") |
| Production Pierce | 30 mm (1-3/16") | |
| Maximum Cut | 35 mm (1-3/8") | |
| Stainless Steel | Production Pierce | 20 mm (13/16") |
| Maximum Cut | 25 mm (1") | |
| Aluminum | Production Pierce | 20 mm (13/16") |
| Maximum Cut | 25 mm (1") |
Power & High-Definition Technology
The ARCBRO 130HD combines 130A output, high-definition cutting performance, stable arc control and support for multiple process gases for demanding CNC plasma cutting applications.
130A Output
Meets production cutting demands
High-Definition Cut Quality
Clean and consistent cut edges
Stable Arc Performance
Reliable for continuous operation
Multiple Process Gases
O₂, N₂, F5, H35, Air, Ar
TECHNICAL INFORMATION
TECHNICAL INFO
THREE-PHASE INPUT
BROCHURE
ARCBRO 130HD Brochure
Product overview, technical specifications and application information for the ARCBRO 130HD.
