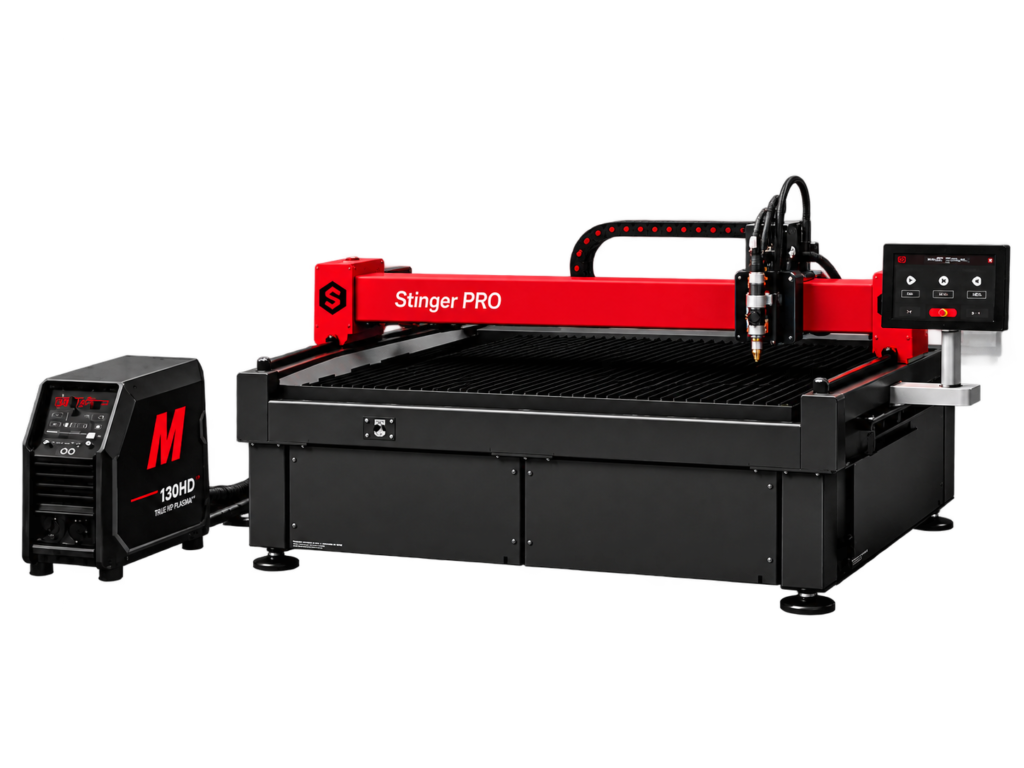

COMPLETE CNC PLASMA CUTTING SOLUTION
STINGER PRO + 130HD
Precision Plasma Cutting Package
Stinger Pro CNC Cutting Table and ARCBRO 130HD High-Definition Plasma Source brought together as one complete CNC plasma cutting package for professional fabrication.
BUILT FOR REAL PRODUCTION
Production Positioning
Designed as a complete CNC plasma cutting package for production-focused fabrication. Final application limits and technical values will be confirmed from the approved product data.
—
Recommended Production Range
—
Maximum Process Current
—
Cutting Area
—
Machine Accuracy
ONE PACKAGE. CLEARLY DEFINED.
Two key components. One complete cutting solution.

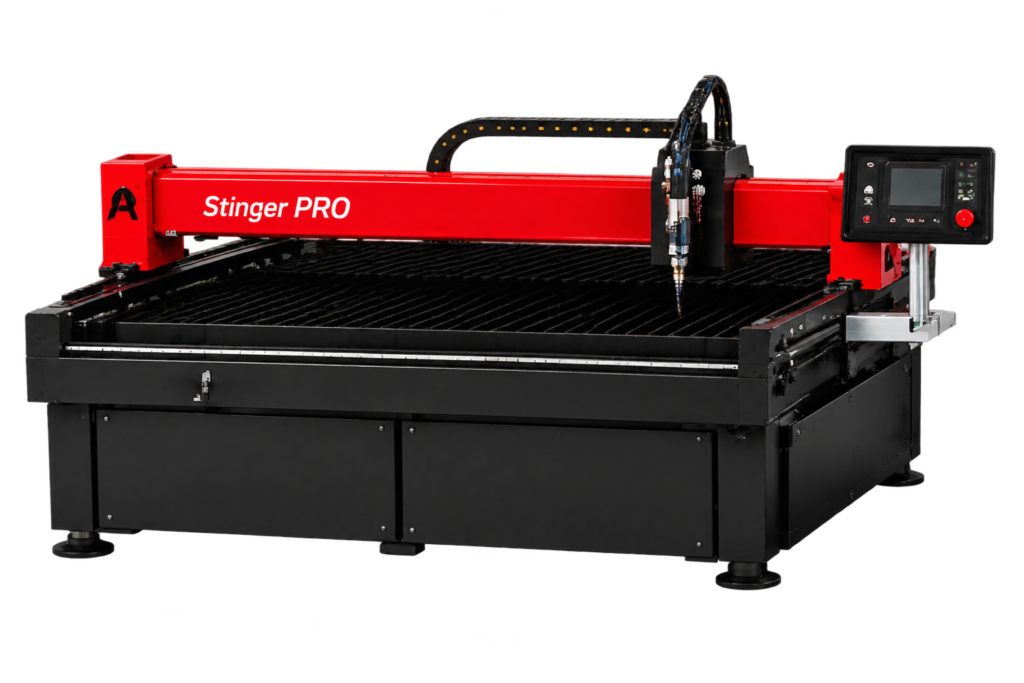

STINGER PRO
CNC Cutting Table
Provides the CNC cutting-table platform and machine-control foundation of the package.
130HD
Plasma Source
Provides the dedicated high-definition plasma source for the package cutting process.
ONE COMPLETE CNC PLASMA CUTTING SOLUTION
Together, they form an integrated CNC plasma cutting package that brings the cutting table and plasma source into one coordinated ARCBRO solution.
WHY STINGER PRO + 130HD?
A practical solution for better cutting results and higher productivity.
Consistent Cutting Quality
Matched table and plasma-source architecture for stable, repeatable process performance.
Built for Production
A production-focused package that keeps machine platform and plasma process working together.
Practical Operating Cost
A coordinated package approach organized around practical day-to-day production requirements.
Matched as One System
Stinger Pro and 130HD presented as one coordinated ARCBRO package, not two unrelated products.
Heavy-Duty CNC Cutting Platform
Built for professional CNC plasma cutting with a rigid steel structure, precision motion system and production-ready control platform.
| Cutting Area | 3000 × 1500 mm |
| Table Type | Water / Downdraft Table |
| CNC Control System | iPC |
| Motion System | Rack & Pinion / Dual-Motor Gantry |
| Rapid Traverse Speed | Up to 30,000 mm/min |
| Machine Accuracy | ±0.05 mm |

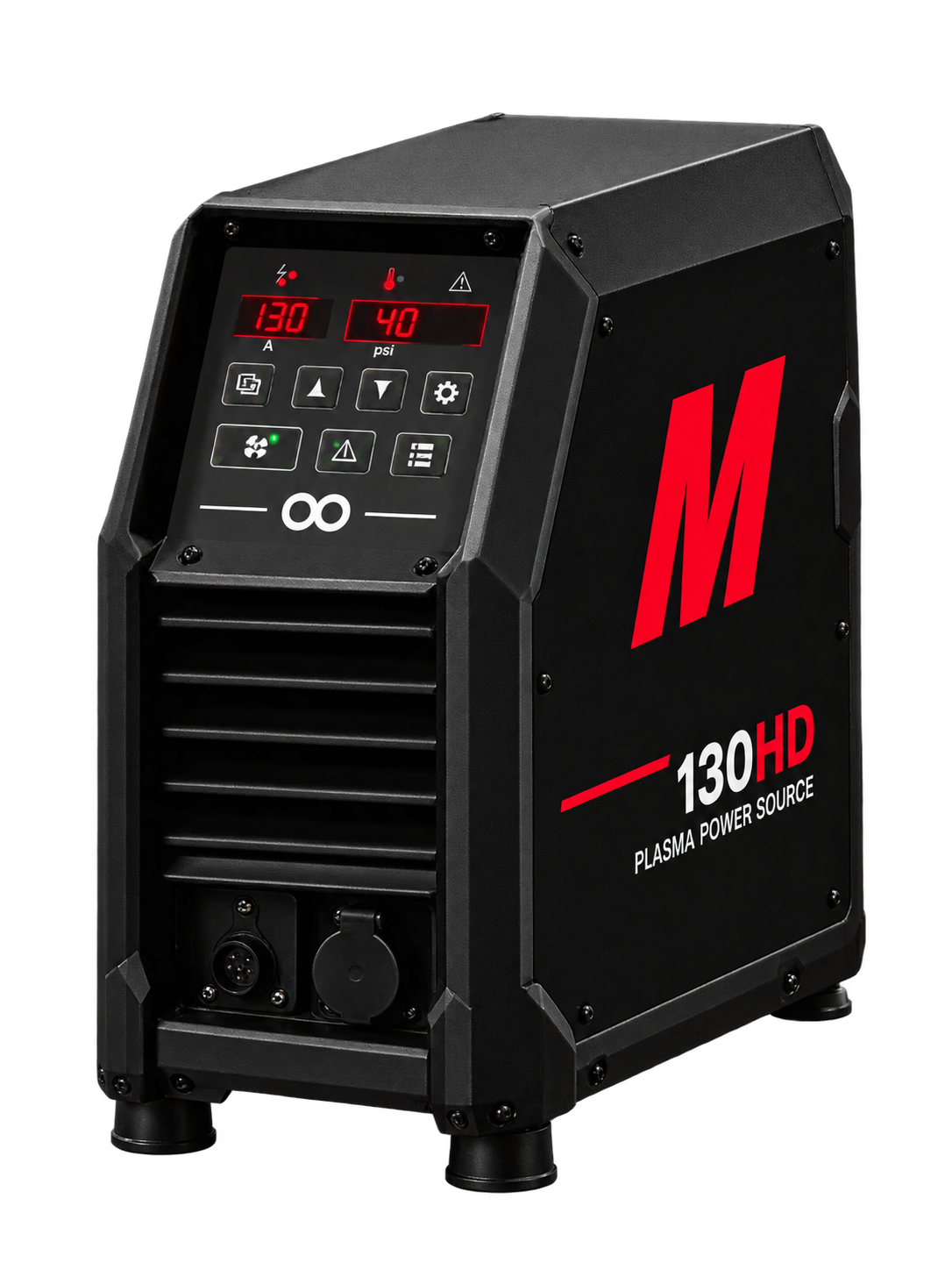

130HD
High-Precision Plasma Source
The 130HD delivers outstanding cut quality, performance and reliability for industrial applications. Designed for maximum uptime and consistent results.
| Output Current | 130 A |
| Mild Steel Dross-Free Cutting | 16 mm |
| Mild Steel Production Piercing | 30 mm |
| Mild Steel Maximum Cutting | 35 mm |
| Stainless Steel / Aluminum | 20 mm Piercing / 25 mm Maximum Cutting |
| Input Voltage | 200/208–480 VAC, 3-Phase |

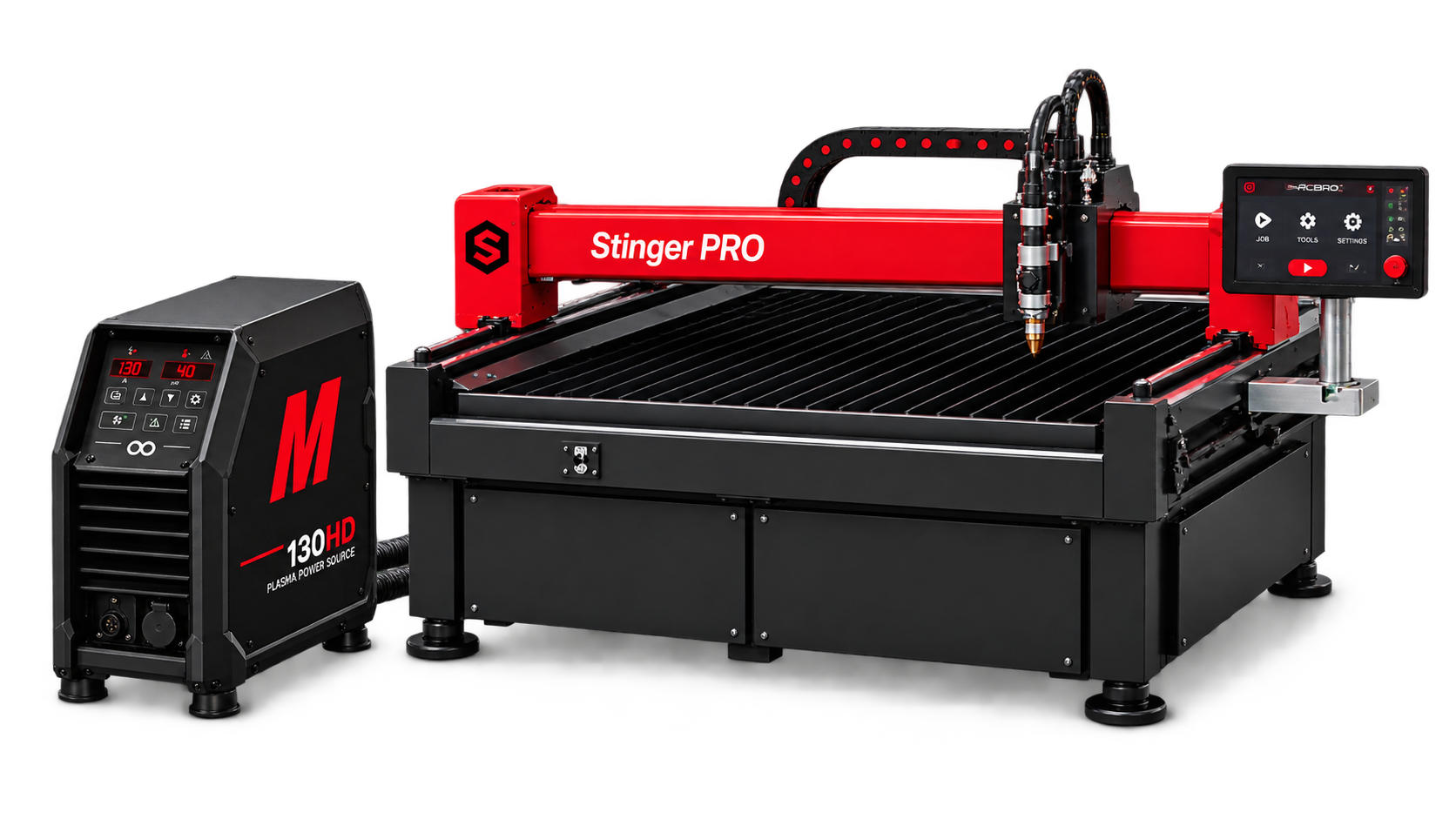

ONE COMPLETE SYSTEM
Core cutting table and plasma source presented as one package.
CLEAR PRODUCT MATCHING
Customers can review the two main system components together.

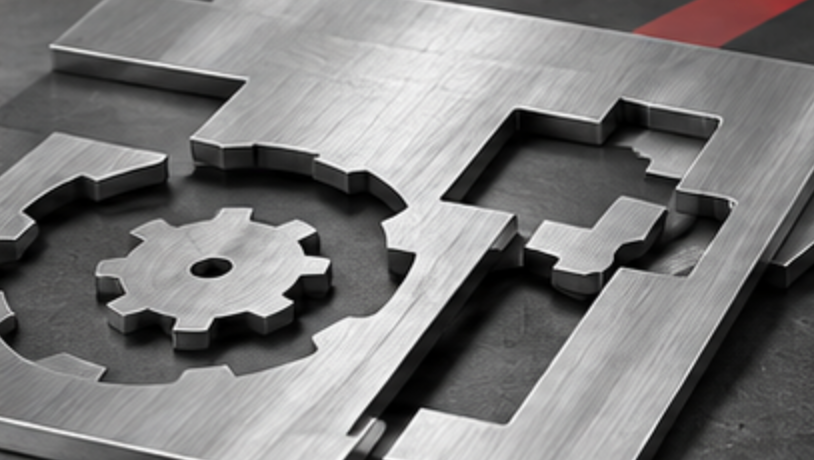

HIGH-DEFINITION PLATFORM
Positioned for high-definition CNC plasma cutting applications.
ARCBRO SUPPORT
Technical information and support organized around the package.
130HD CUTTING PERFORMANCE
Clean Cuts. Higher Productivity.
| Material | Recommended | Maximum |
|---|---|---|
| Mild Steel | 1 in (25 mm) | 1-1/4 in (32 mm) |
| Stainless Steel | 5/8 in (16 mm) | 1 in (25 mm) |
| Aluminum | 5/8 in (16 mm) | 1 in (25 mm) |
| Brass | 1/2 in (12 mm) | 3/4 in (19 mm) |
| Copper | 1/2 in (12 mm) | 3/4 in (19 mm) |
FASTER CUTTING
QUALITY
OPERATING COSTS

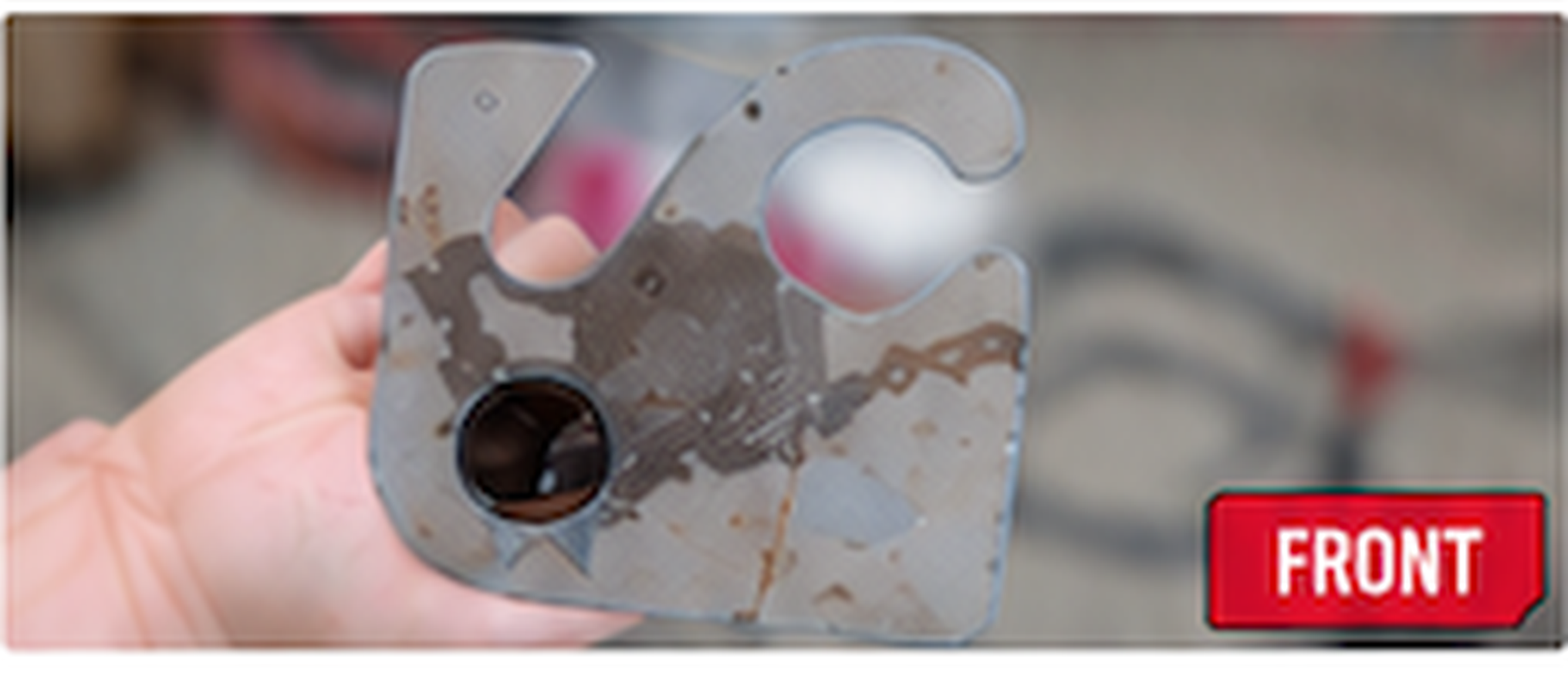

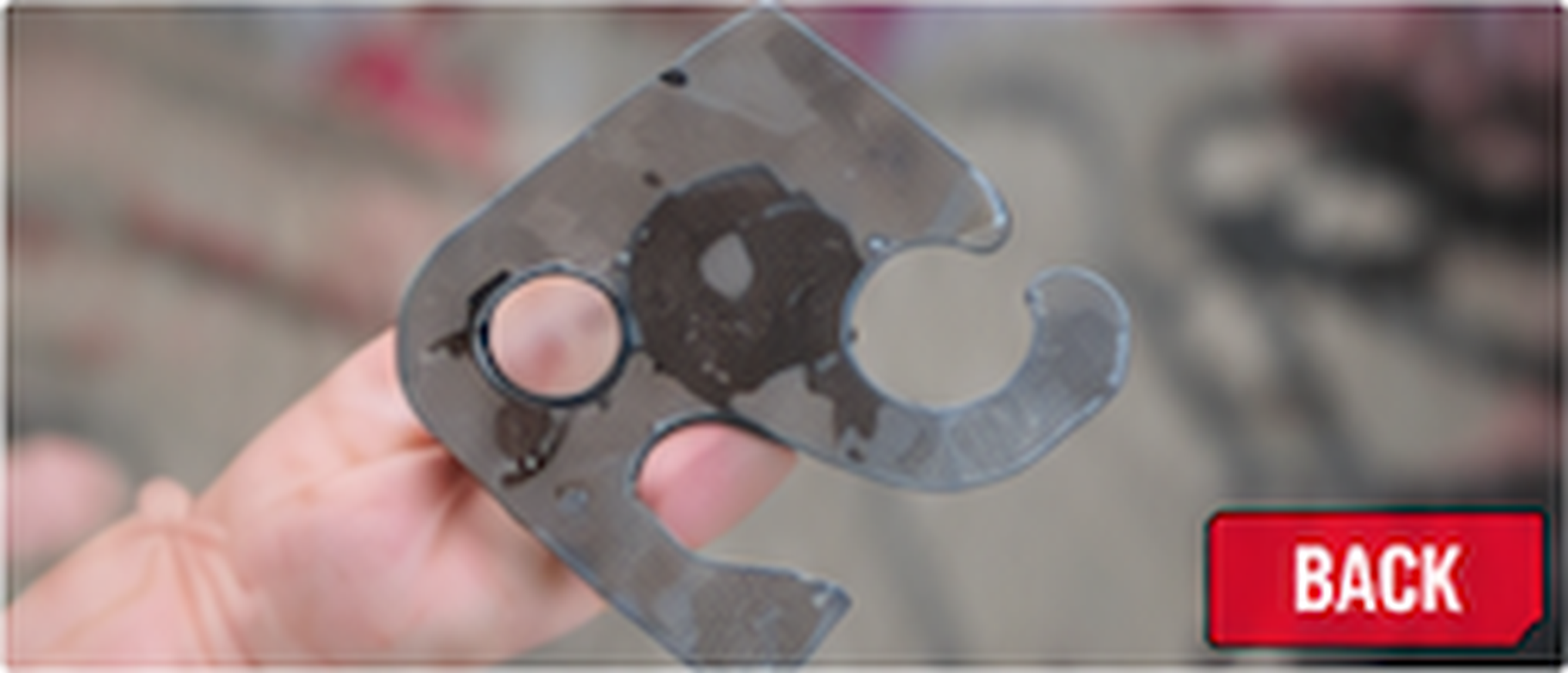

INDUSTRIAL CUTTING RESULTS
Real Parts. Real Performance.
| Material | Thickness | Cut Quality | Application |
|---|---|---|---|
| Mild Steel | 1/4 in | Excellent | Structural Parts |
| Mild Steel | 1/2 in | Excellent | Equipment |
| Mild Steel | 1 in | Very Good | Fabrication |
| Stainless Steel | 5/8 in | Very Good | Food Industry |
| Aluminum | 1/2 in | Excellent | Transportation |
| Brass | 1/2 in | Very Good | Decorative Parts |
LOWER COSTS. HIGHER RETURNS.
A more productive business starts here.
Metal Fabrication
Steel Processing
Machinery Manufacturing
Stainless Steel Processing
Aluminum Processing

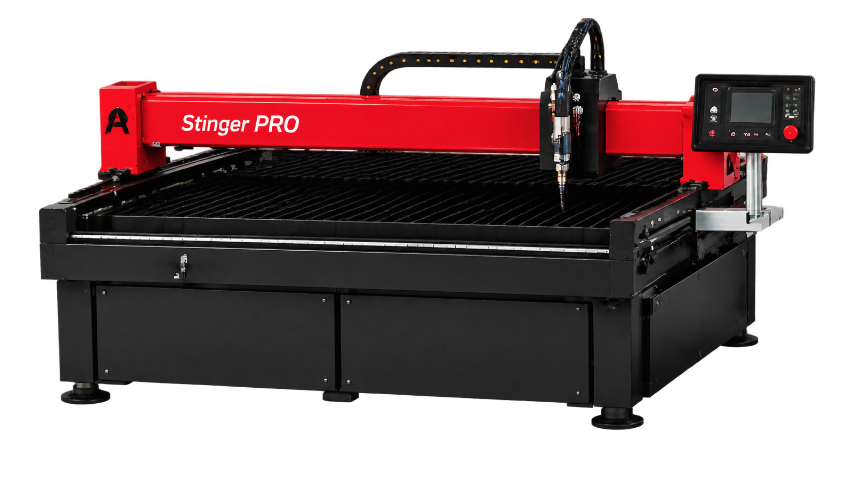

MACHINE PLATFORM
Heavy-duty welded machine structure designed for stable cutting performance, long service life and dependable daily production.

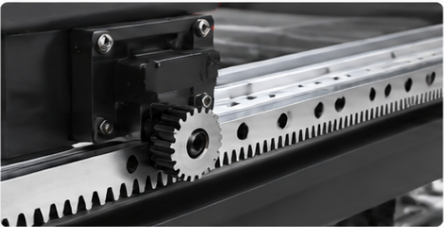

CNC & MOTION SYSTEM
Integrated industrial CNC control with rack-and-pinion motion and coordinated gantry travel for accurate positioning and smooth contour cutting.
HIGH-DEFINITION PLASMA
ARCBRO 130HD high-definition plasma source delivers clean cut quality, strong piercing capability and reliable processing performance for mild steel, stainless steel and aluminum.

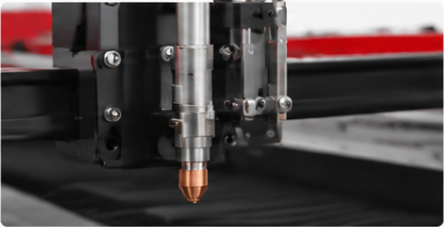

TORCH & HEIGHT CONTROL
Torch height control helps maintain proper standoff distance during piercing and cutting, improving cutting consistency and supporting consumable life.
130HD CUTTING DATA
MILD STEEL
Process: O₂ Plasma / O₂ Shield
| Current | Thickness | Approx. Cutting Speed |
| 80 A | 3 mm | 6145 mm/min |
| 80 A | 12 mm | 1410 mm/min |
| 80 A | 20 mm | 545 mm/min |
| 130 A | 6 mm | 4035 mm/min |
| 130 A | 10 mm | 2680 mm/min |
| 130 A | 25 mm | 550 mm/min |
STAINLESS STEEL
Process A: H35 Plasma / N₂ Shield
| Current | Thickness | Approx. Cutting Speed |
| 130 A | 8 mm | 1140 mm/min |
| 130 A | 12 mm | 820 mm/min |
| 130 A | 20 mm | 360 mm/min |
Process B: H35 + N₂ Plasma / N₂ Shield
| Current | Thickness | Approx. Cutting Speed |
| 130 A | 8 mm | 1515 mm/min |
| 130 A | 12 mm | 875 mm/min |
| 130 A | 20 mm | 305 mm/min |
Download product literature, specifications and package documentation.
BROCHURE
STINGER PRO + 130HD Package Brochure
Download the complete brochure for the Stinger Pro + 130HD CNC plasma cutting package.
