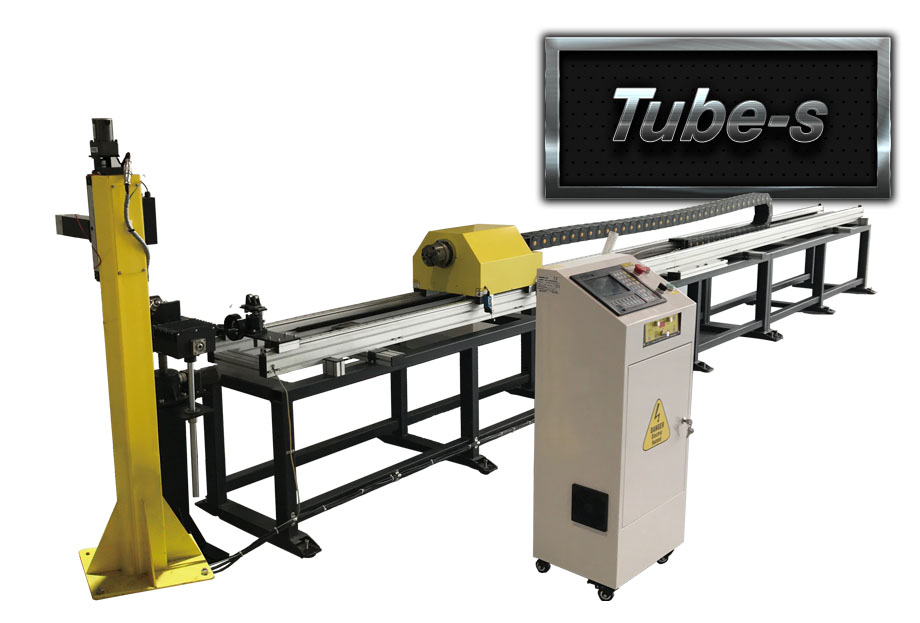

ARCBRO Tube-S CNC Pipe Cutting Machine

Overview

 < Tube-S | Standard Features >

Portable CNC Pipe Cutting Machine, Simple installation, low investment!

  • The ARCBRO Tube-S is 2-axis for cut-off easily.
  • Having an outside diameter of 25mm-200mm(1 to 8-inches).
  • a length of up to 3000mm(10-feet), extendable, as long as you wish.
  • ARCBRO’s exclusive Windows-DOS®-based operating system with library, it not easy damage by virus.
  • improves pipe fabrication productivity and quality by consolidating set-up, programming and cutting into one operation.

ARCBRO Tube-S Feature :

  • Economically priced–great choice.
  • Consolidates and simple set-up.
  • Light weight and easy move.
  • Programming and cutting.
  • Easy to use programming software – no special skills required.
  • Large pre-loaded cut library

More Information – cnc pipe cutting machine



Specifications

Type 2-axis
Input Voltage 220V(optional)
Frequency 50/60Hz
Input Power 1200W
Display Color 7″ LTD
Cutting Speed 0~5,000mm/min
Movement Speed 0~6,000mm/min
Cutting Mode Flame/Plasma
Automatic Torch Height Control ARC Voltage/Capacitance
Cutting Pipe Diameter Range ∅25~200mm (can be customized)
Effective Pipe Length ≤6,000mm(Extended)
Pipe Thickness Perpendicular cutting: 3~80mm
Request the Pipe Ellipse ≤1%
