Handheld laser welding machine 1000w/1500w/2000w

Overview

Laser welding is a kind of processing method which uses high energy density laser beam as heat source to weld materials.
In recent years, due to the continuous development and progress of materials, technology and process, laser has been widely used in the welding and brazing of plastics, metals, etc., and will continue to replace the traditional welding methods such as argon arc welding in automobile, sensor, electronic and other industries.
Hand held laser welding machine with hand-held welding head, similar to argon arc welding, flexible and simple operation, suitable for small batch and large batch orders with low requirements for product consistency
It can be widely used in the complicated and irregular welding process of cabinet, kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries.

Advantage

Laser welding is a kind of processing method which uses high energy density laser beam as heat source to weld materials.
In recent years, due to the continuous development and progress of materials, technology and process, laser has been widely used in the welding and brazing of plastics, metals, etc., and will continue to replace the traditional welding methods such as argon arc welding in automobile, sensor, electronic and other industries.
Hand held laser welding machine with hand-held welding head, similar to argon arc welding, flexible and simple operation, suitable for small batch and large batch orders with low requirements for product consistency
It can be widely used in the complicated and irregular welding process of cabinet, kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries.

Superior Machinery, every set is heat treated processed !

Main Parts		Picture

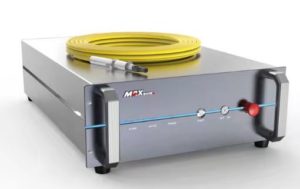

LASER SOURCE	High photoelectric conversion, better and more stable laser beam.

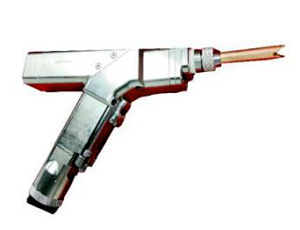

LASER HEAD	It makes up for the disadvantage of small laser spot, expands the tolerance range and weld width, and achieves better weld forming.

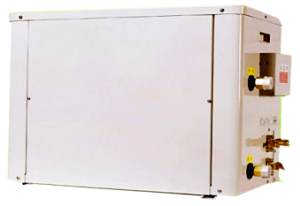

WATER CHILLER	High quality chiller, stable performance, good refrigeration effect, energy saving and environmental protection.

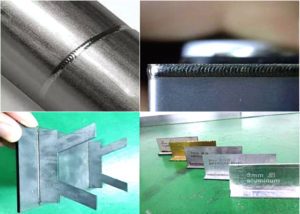

It can be used for welding aluminum 1.0 MM-4 mm, stainless steel 1.5 mm-6.0 mm,

carbon steel 1.5 mm-6.0 mm, galvanized sheet 1.2 mm-5.0 mm, etc

COMPARISON:LASER WELDING / TRADITIONAL WELDING

COMPARISON ITEMS	TRADITIONAL WELDING	LASER WELDING
Heat input to work-piece	Very high	Low
Deformation and undercut of work-piece	Large	Small
Bond strength with base metal	Commonly	Very Nice
Follow up treatment	Polish	No grinding, or little grinding
Welding Speed	Commonly	More than 2 times of argon arc welding
Applicable materials	Stainless steel, carbon steel, galvanized sheet	Stainless steel, carbon steel, galvanized sheet
Consumables	Many consumables	Less consumables
Operation difficulty	Complex	Simple
Operator safety	Unsafe	Safe
Environmental impact	Not environmental	Environmental
Welding fault tolerance	Good	Good
Swing welding	–	Yes
The spot width is adjustable	–	Yes
Welding quality comparison	Bad	Very good

TECHNICAL INFO

ITEMS	PARAMETER
Model	AKSON
Laser Power	1000W
Working Voltage	220V
Laser Wavelength	1080nm
Conduction Type	Fiber laser
Welding Speed Range	0~120 mm/s
Water Chiller	Industrial constant temperature water tank
Working Environment Temperature Range	10~40 ℃
Humidity Range Of Working Environment	< 70% No condensation
Welding Ability	Stainless steel 4mm
	Carbon steel 4mm
	Aluminum 2mm
Welding Seam Requirements	≤0.5mm
