ARCBRO Archer Fiber Laser Cutting Machine

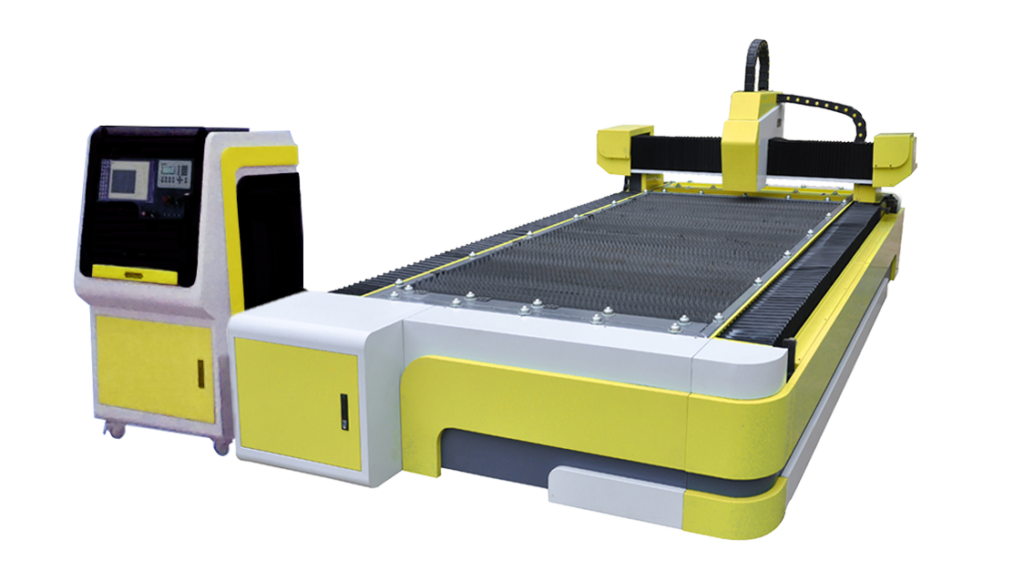

fiber laser machine



Overview

 < Archer | Standard Features >

  • Equip SPI high-power fiber laser generator.
  • Rack and pinion, linear rails and CNC transmission system make high precision laser cutting available.
  • Mainly used for cutting and forming of carbon steel plate, stainless steel,aluminum and other metal materials.
  • Cutting Materials:
    carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet and other sheet metal.
  • Industrial Applications:
    Applied in such as medical microelectronics, spectacle frame, metro or auto accessories, mechanical parts, arts and crafts, hardware, advertising, etc.

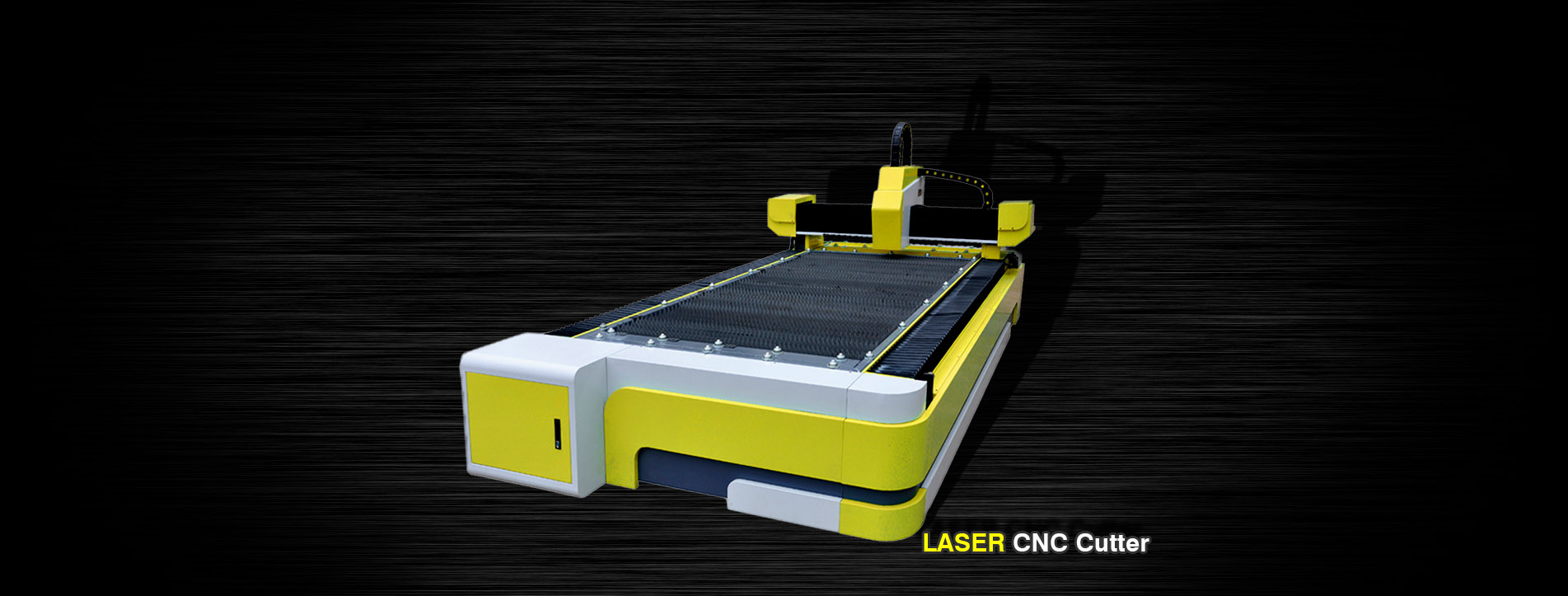

archer cnc fiber laser cutting machine

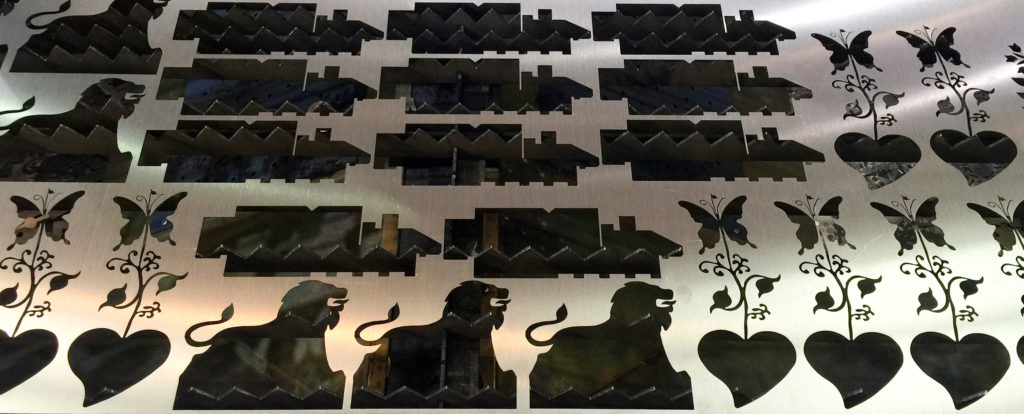

laser cutting1

Specifications

Working Size 1500mm x 3000mm / 1300mm x 2500mm
Laser Wave length 1070±10nm
Laser Output Power 300W/400/500W/1000W
Cutting Thickness 0.2-3mm/0.2-4mm
Max Cutting Speed 30m/min
Position  Accuracy <±0.04mm
Minimum Line width >0.12MM
Cooling System Water cooling
Driving System  YASKAWA Servo motor and drivers
Working Voltage AC220V/110V±10% 50Hz/60Hz
Transmission X axis with imported ball screw,Y axis with imported square rail and gears

Download

Click PDF to save Brochure:
