ARCBRO Tube-Pro

ARCBRO Tube-Pro CNC Pipe Cutter

ARCBRO tube pro cnc pipe cutting machine



Overview

 < Tube-Pro | Standard Features >

4-axis Pipe Cutting Machine, Φ25-400mm,length 3000mm and extendable.

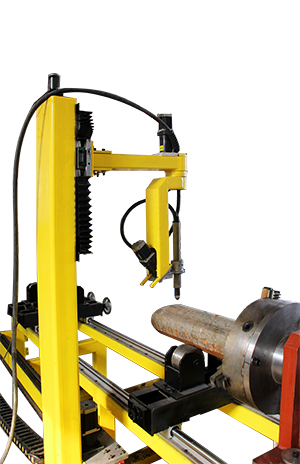

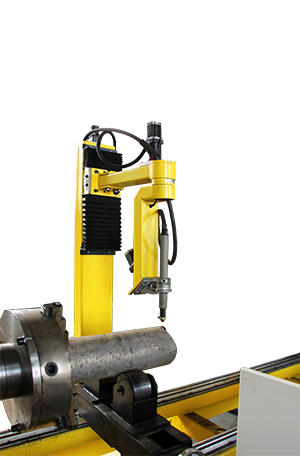

  • Perfect Bevel Cut Removable trolley and cutting table is integrated, this structure keeps the equipment overall stability. When Tube Pro do bevelling cut, the endurable trolley controls torch to get better cutting performance.

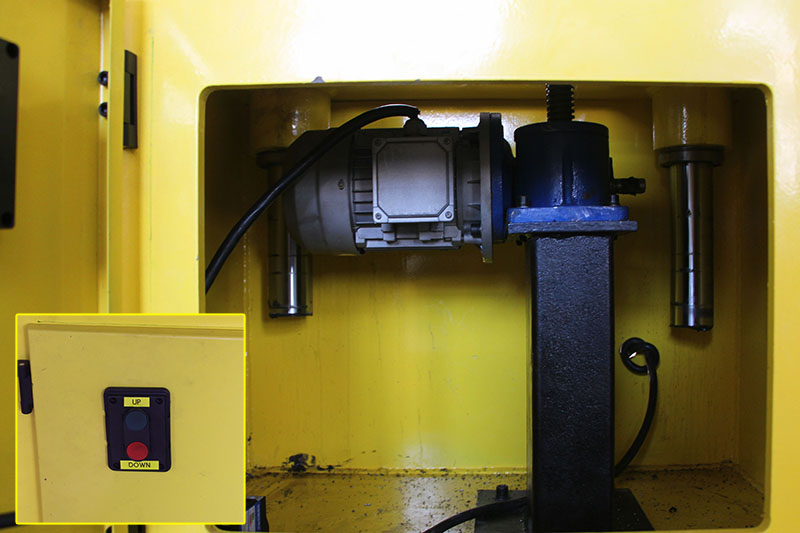

  • Hydraulic Lift System Special design to lift the gear box up and down freely extremely extend the applicable diameter range of the pipe.

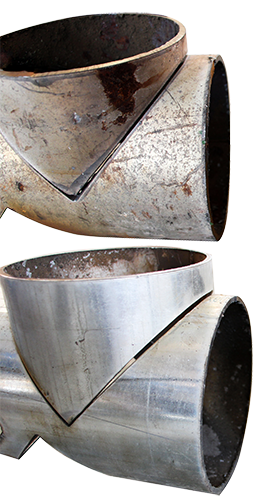

  • Plug and Play All-in-one CNC pipe profiling machine, simple to setup and easy to operate. Finish various fabrication of pipe in seconds. No need skilled commissioning.

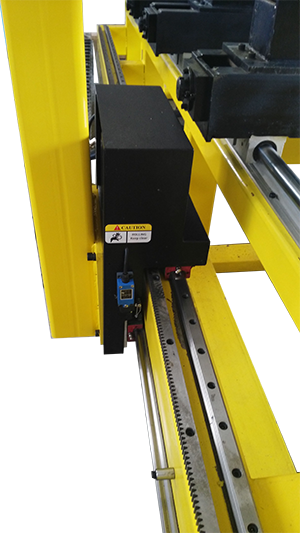

  • Rigid Structural Steel Machine Bed Tube Pro employ rigid structural steel frame supporting the Parallel turning rolls, this design is more stable than traditional X-type supporting rolls, can support bigger pipe.

cnc tube cutter

tube pro 3 tube pro 1

tube pro 2 tube pro 4

arcbro tube pro6

Specifications

Type 4-axis
Input Voltage 220V(Optional)
Frequency 50/60Hz
Input Power 1200W or More
Display Color 7″ LTD
Cutting Speed ≤10~5,000mm/min
Movement Speed 10~6,000mm/min
Rotational Speed 0~5,000mm/min
Cutting Mode Plasma/Flame
Automatic Torch Height Control Arc voltage
Cutting Pipe Diameter Range ∅25~400mm (Can be customized)
Effective Pipe Length 3000mm (Extended)
Bevel Cutting Angle <90°
Pipe Thickness Perpendicular cutting: 3~80mm

Bevel cutting: 4~40mm

More bigger torches, more larger thickness

Request the Pipe Ellipse ≤1%

Sample Video

Download

Click PDF to save Brochure:

pdf icon

Save
